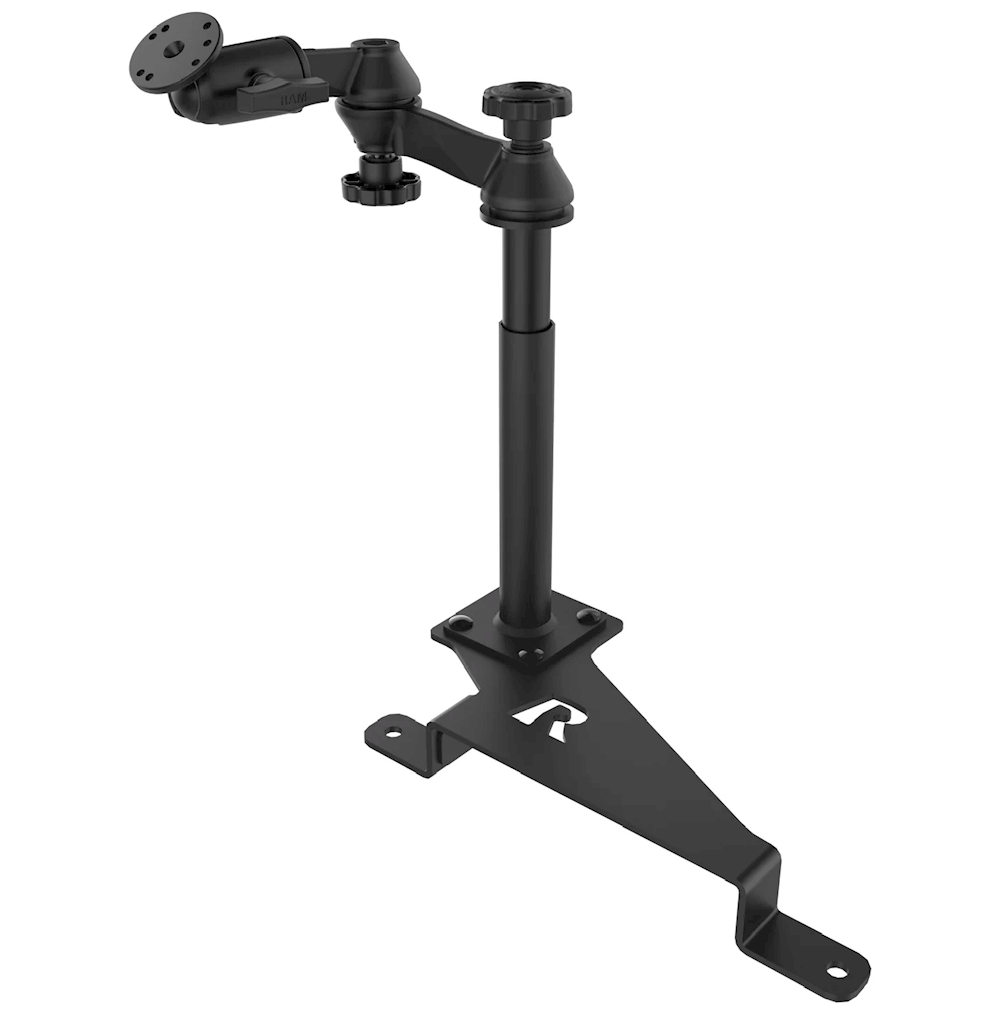

RAM® No-Drill™ Mount for '15-24 Ford F-150, ’17-24 F-250 + More
In stock
Same day despatch on orders placed before 4pm
Code: RAM-VB-195-SW2
Features
- Custom vehicle mount designed specifically for 2015-2023 Ford F-150, 2017-2023 F-250, and much more

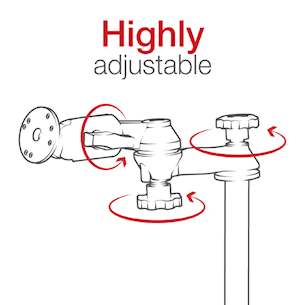

- Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet holders and laptop holders
- Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
- Made of powder-coated steel and marine-grade aluminium
- Backed by a lifetime warranty

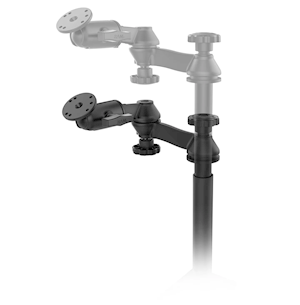

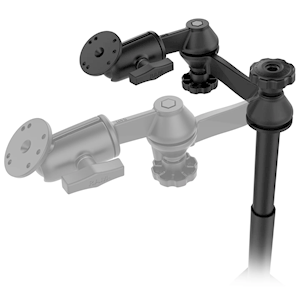

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Dodge, Ford, and Jeep vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
hardware included
Assembly Hardware
Stabilizer Foot
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 13.625" center to center
plate size
2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine grade-aluminium
packaging type
Box
Weight
5.0 kg
