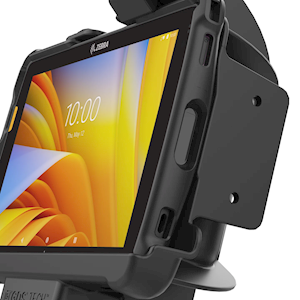

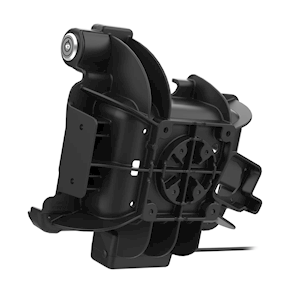

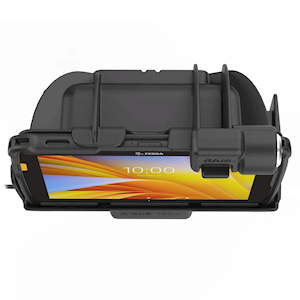

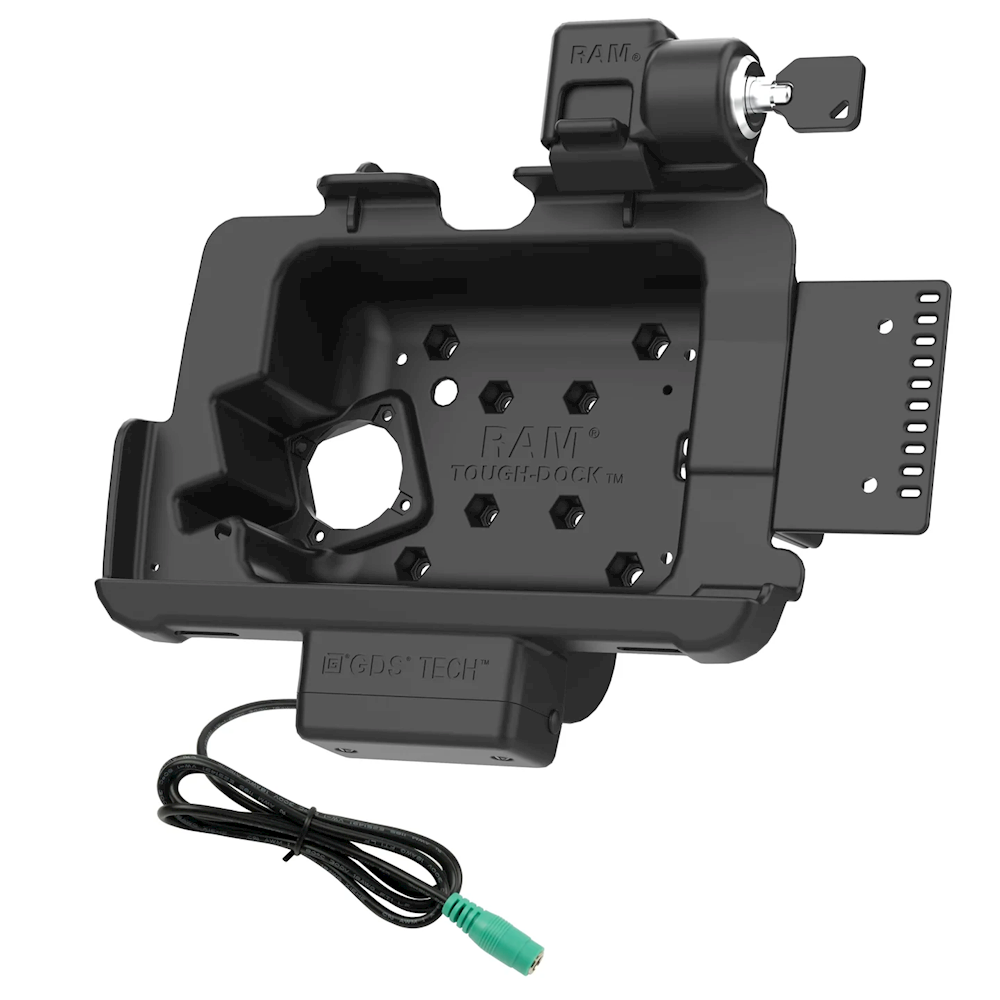

Locking RAM® Tough-Dock™ for Zebra ET4x 8" Tablet
In stock
Same day despatch on orders placed before 4pm
Code: RAM-HOL-ZE20PKL
FEATURES
- RAM® Tough-Dock™ perfectly secures the Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame; includes set of keys for locking capabilities; MIL-STD 810G Shock and Vibration tested

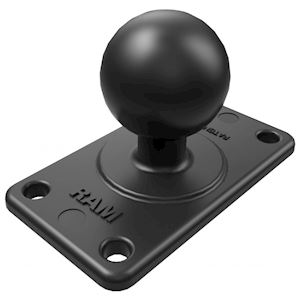

- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Backed by a lifetime warranty
OVERVIEW
Featuring charging capabilities and a key lock for theft deterrence, the RAM® Tough-Dock™ for Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
HARDWARE INCLUDED
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
HOLE PATTERN
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
INPUT CONNECTOR
5.5mm DC Connector
INPUT CABLE LENGTH
1 Meter
CERTIFICATIONS
RoHS
WEEE
CE
UKCA
WARRANTY
3 year warranty
WEIGHT
0.73 kg
ADDITIONAL INFORMATION
This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKL-ZE20P
