RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Ball

£73.33 +VAT

FREE Delivery on orders over £100 to UK mainland

In stock

Same day despatch on orders placed before 4pm

Code: RAM-HOL-UN14WB-1

FEATURES

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip design and 15W maximum output
  • RAM® Mounts Compatible with B size double socket arms and ball bases for mounting in your preferred location
  • Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

OVERVIEW

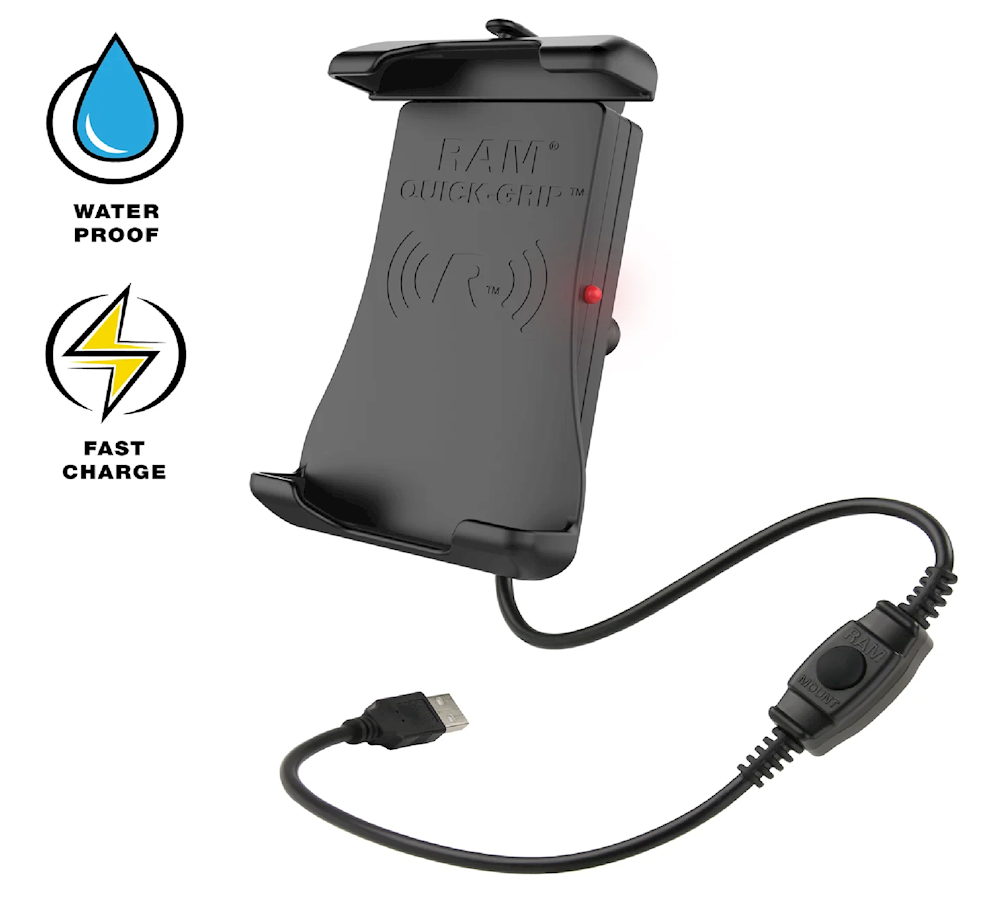

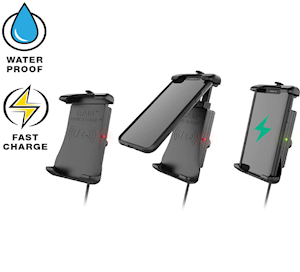

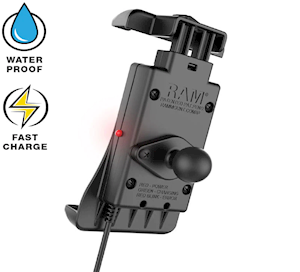

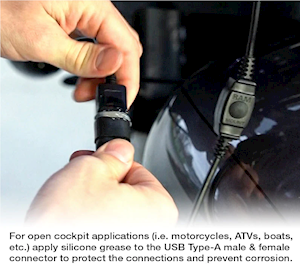

The RAM® Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip Wireless kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

HARDWARE INCLUDED

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties

HOLDER DIMENSIONS

Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

High strength composite
Stainless steel

PACKAGING TYPE

Retail Box

POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

OPERATING TEMPERATURE

0°C to +37.7°C

CERTIFICATIONS

FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant

WARRANTY

1 year warranty

WEIGHT

0.47 kg
