RAM® EZ-Roll'r™ Powered Dock for XCover6 Pro with OEM or RAM® Skin™

FEATURES

Powered dock designed specifically for the Samsung Galaxy XCover6 Pro with RAM Skin

Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection

2-hole AMPS hole pattern on the back of the dock to install a B or C Size RAM® diamond ball base

Backed by a 3-year warranty

OVERVIEW

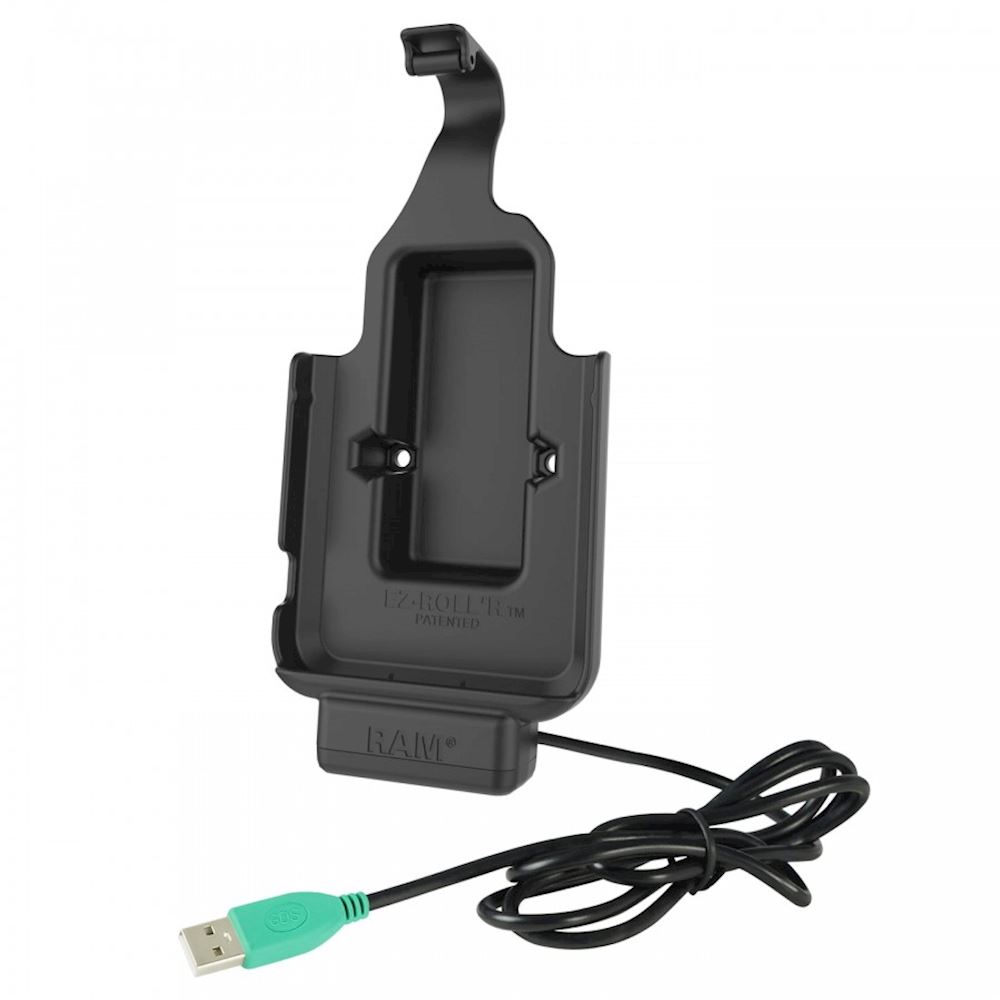

This RAM® EZ-Roll’r™ powered dock is designed specifically for the Samsung Galaxy XCover6 Pro with the RAM Skin, and features two integrated pogo pins that provide charging capabilities to the device. While keeping the XCover6 Pro secure, the RAM® EZ-Roll’r™ powered dock also leaves the device’s buttons and cameras exposed and usable. For mounting, pair the dock with B or C size RAM® diamond ball bases. This powered dock receives power via USB Type A male pigtail and is compatible with the GDS® 2-port USB cigarette charger as well as the GDS® modular hardwire charger with USB Type A female connector.

HARDWARE INCLUDED

(2) #8-32 x 5/8" Machine Screws

(2) #8-32 Nylock Nuts

PRODUCT DIMENSIONS

Overall Height: 7.88"

Overall Width: 3.63"

Overall Depth: 1.63"

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

USB Type A Male

INPUT CABLE LENGTH

1.25 Meters

COMPLIANCE

Made from ABS-V0 that conforms to UL 94-V0 flammability tests

WARRANTY

3 year warranty

WEIGHT

0.14kg
