RAM® Powered Dock for Tab Active3 & Active5 with Hardwire Charger

Please note - It is not recommended to use this product in a high vibration environment, such as on a motorbike. Please get in touch via our contact us page if you are looking for a Tab Active 3 or 5 solution for such an application

FEATURES

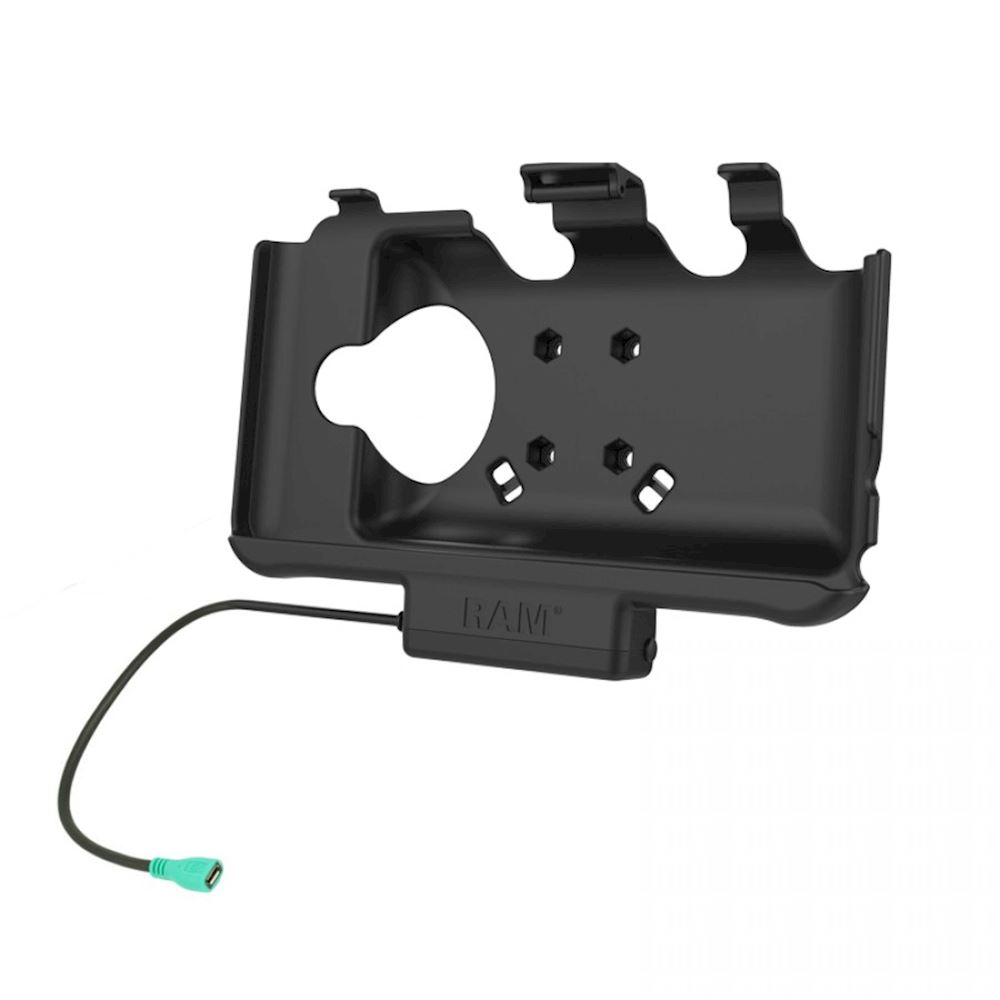

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active5 through integrated pogo pin connector and mUSB cable

Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

Vehicle hardwire charger included

Backed by a 3-year warranty

OVERVIEW

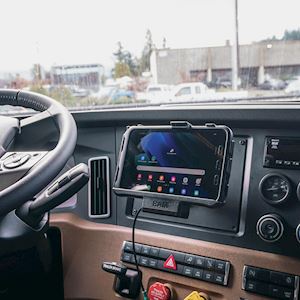

This powered cradle for the Samsung Tab Active3 and Tab Active5 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(2) Large Cable Ties

(5) Small Cable Ties

(1) Hardwire Charger

PRODUCT DIMENSIONS

Width: 9.25"

Height: 6.375"

Depth: 2"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10V - 30V DC

OUTPUT VOLTAGE

5-9VDC

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

mUSB 2.0

INPUT CABLE LENGTH

.21 Meter

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CERTIFICATIONS

CE Certification

e-Mark Certification

RCM Certification

FCC Certification

WEIGHT

420g

WARRANTY STATUS

3 year warranty
