RAM® EZ Roll'r™ Power + Dual USB Data Cradle for Tab Active3 and Tab Active5

FEATURES

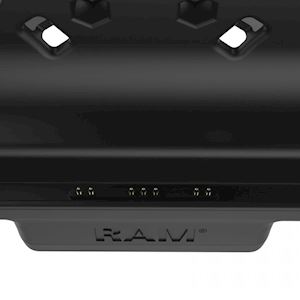

- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active3 and Tab Active5 provides charging and connects two additional USB peripheral through an integrated pogo pin connector

- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

- Backed by a 3-year warranty

OVERVIEW

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active5

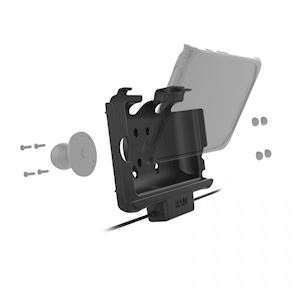

has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active from your vehicle, to your person, to your desk with zero hassle.

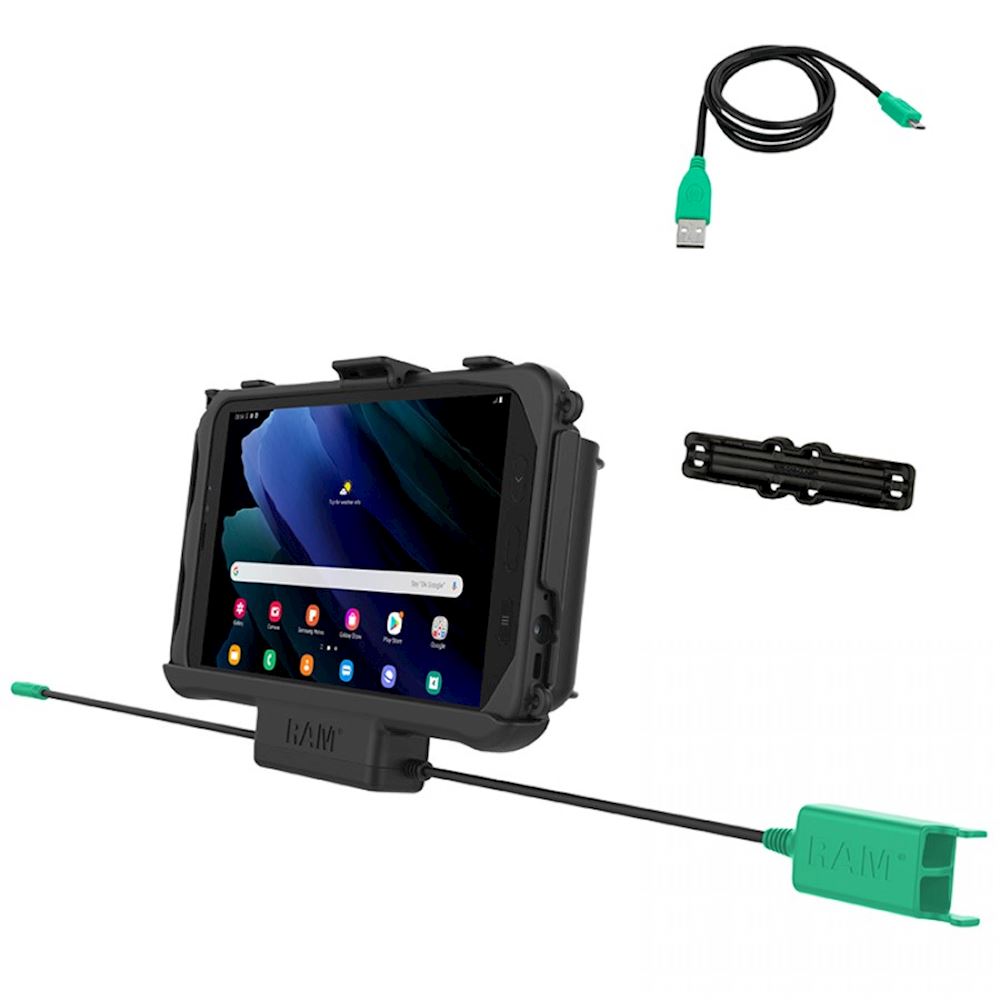

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(2) Large Cable Ties

(5) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"

Height: 6.375"

Depth: 2"

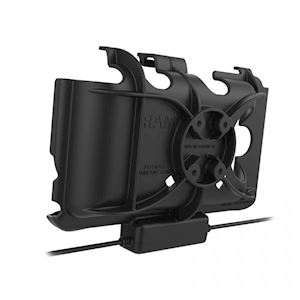

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

This product will not support IntelliSkin®.

Mount using a round ball base (RAM-202 recommended)

Device speakers and mics exposed

Device headphone jack exposed

NFC reader accessible while in dock

mUSB female pigtail for power
