RAM® Low-Profile Locking Powered Dock for Tab Active3 and 5

FEATURES

Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3 and 5 wrapped in a Samsung OEM protective case or RAM® Skin™

Slim-profile design at 2.28" depth with metal reinforcement plate

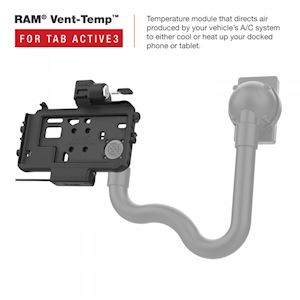

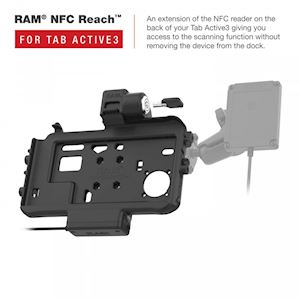

Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments

Provides charging connectivity through integrated pogo pin technology and mUSB cable

Backed by a 3-year warranty

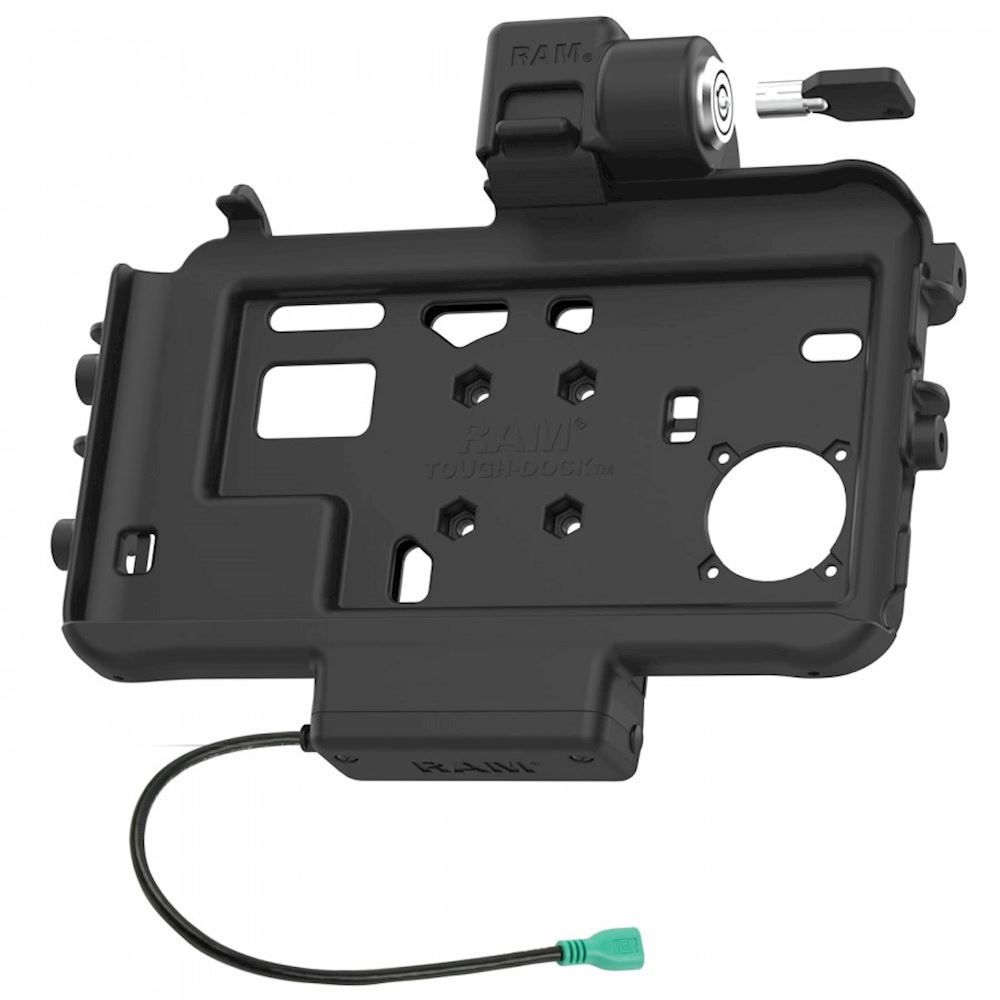

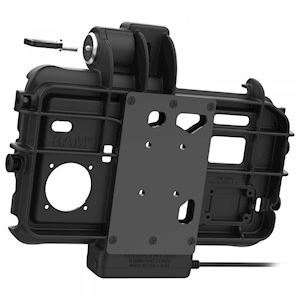

The low-profile RAM® Powered Dock for Samsung Tab Active3 (RAM-HOL-SAM58PKLTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated mUSB cable, taking advantage of the Tab Active3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is an mUSB to USB Type-A extension cord, cable clamp, and zip ties for cable management.

HARDWARE INCLUDED

(2) Keys

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(2) Large Cable Ties

(6) Small Cable Ties

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4-5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

INPUT CONNECTOR

mUSB Female

INPUT CABLE LENGTH

214mm

WARRANTY

3 year warranty

WEIGHT

0.61kg

ADDITIONAL INFORMATION

This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
