RAM® Key Locking Powered Dock for Samsung Tab Active3 & Tab Active5

FEATURES

- Powered cradle featuring keyed lock for the Samsung Galaxy Tab Active3 and Tab Active5

- RAM® Mounts Compatible™ with AMPS hole pattern components

- Made of high-strength composite materials for durability and reliability in the most demanding environments

- Backed by a 3-year warranty

OVERVIEW

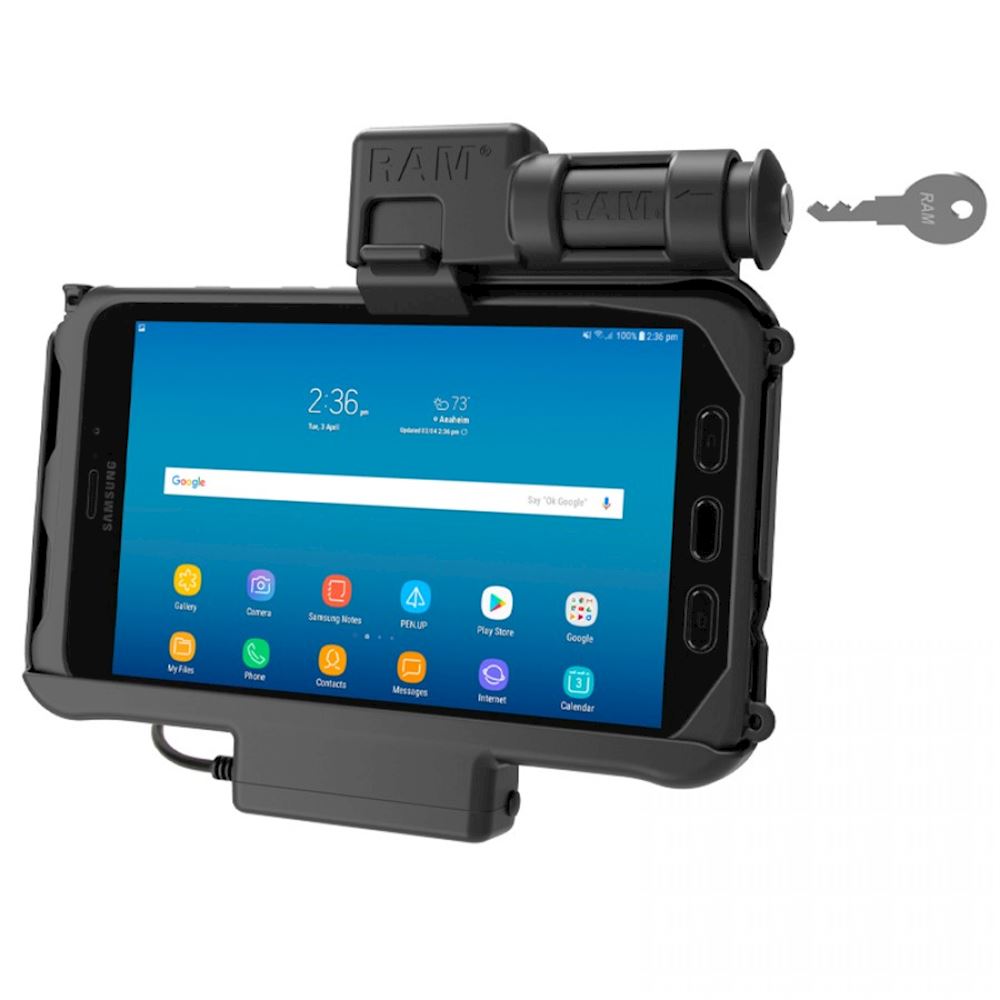

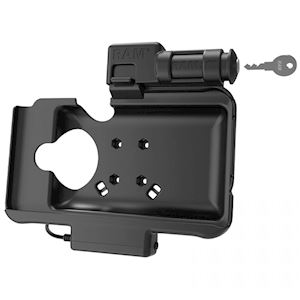

This powered key locking cradle for the Samsung Tab Active3 and Tab Active5 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

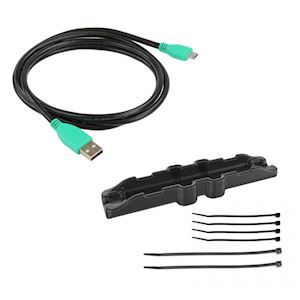

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(2) Large Cable Ties

(7) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"

Height: 7.75"

Depth: 3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

Mount using a round ball base (RAM-202U recommended)

Device speakers and mics exposed

Device headphone jack exposed

mUSB female pigtail for power
