RAM® Key Locking Power + Data Dock for Samsung Tab Active3 & Tab Active5
In stock
Same day despatch on orders placed before 4pm
Code: RAM-HOL-SAM58PDKL
FEATURES

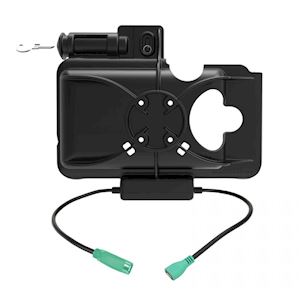

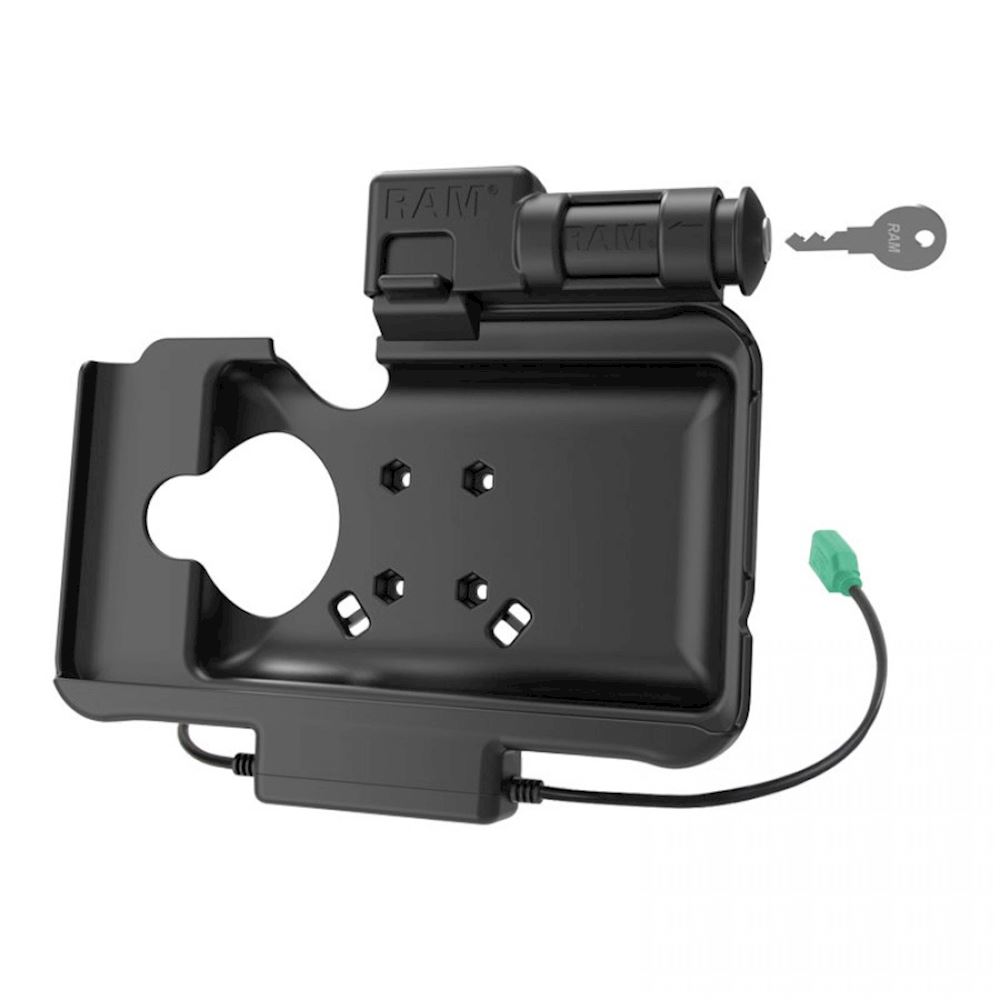

Powered cradle featuring keyed lock for the Samsung Galaxy Tab Active3 and Tab Active5
RAM® Mounts Compatible™ with AMPS hole pattern components
Made of high-strength composite materials for durability and reliability in the most demanding environments
Backed by a 3-year warranty
OVERVIEW

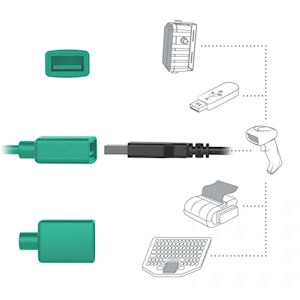

This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active5 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active3 or Tab Active5 from your vehicle, to your person, to your desk with zero hassle.

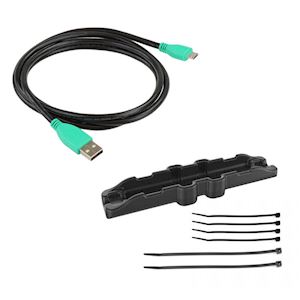

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
PRODUCT DIMENSIONS
Width: 9.25"
Height: 7.75"
Depth: 3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
4.4VDC - 5.4VDC (USB power source dependent)
OUTPUT VOLTAGE
5.20VDC
POWER OUTPUT
500mA
INPUT CONNECTOR
mUSB 2.0 Female
INPUT CABLE LENGTH
.22 Meter
OUTPUT CONNECTOR
USB 1.1 Type A
OUTPUT CABLE LENGTH
.22 Meter
TRANSFER SPEED
12Mbps
WEIGHT
0.54kg
WARRANTY STATUS
3 year warranty
ADDITIONAL INFORMATION
Mount using a round ball base (RAM-202U recommended)
Device speakers and mics exposed
Device headphone jack exposed
mUSB female pigtail for power
