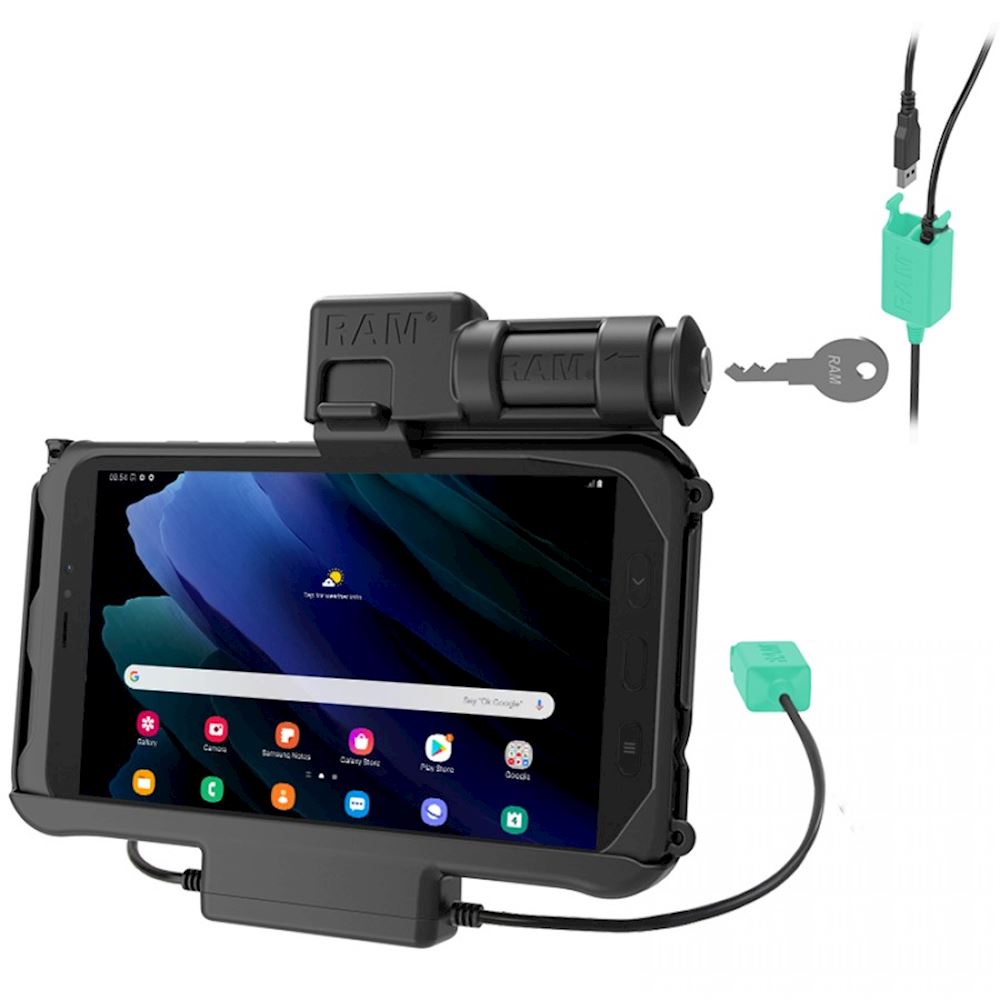

RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active3 & Active5

FEATURES

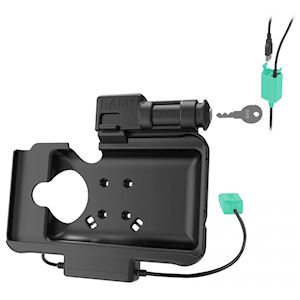

- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active3 and Tab Active5 through integrated pogo pin connector

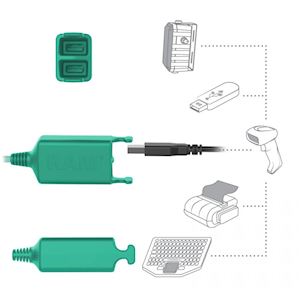

- Dual USB-A port supports up to two peripherals; mUSB port for power

- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components

- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

- Backed by a 3-year warranty

OVERVIEW

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active5 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active3 or 5 from your vehicle, to your person, to your desk with zero hassle.

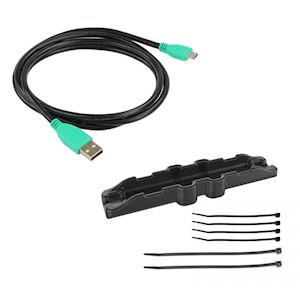

HARDWARE INCLUDED

Assembly Hardware

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(4) Large Cable Ties

(6) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"

Height: 7.75"

Depth: 3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

4.4VDC-5.4VDC (USB power source dependent)

POWER OUTPUT

500mA per USB port

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.22 Meter

OUTPUT CONNECTOR

(2) USB 1.1 Type A

OUTPUT CABLE LENGTH

.22 Meter

TRANSFER SPEED

12Mbps

WEIGHT

570g

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

This product will not support IntelliSkin®

Mount using a round ball base (RAM-202 recommended)

Device speakers and mics exposed

Device headphone jack exposed

Zip tie locations for cable retention

Includes dual USB Type A cable and cable clamp with zip ties

mUSB female pigtail for power
