RAM® Combo Locking Power + Dual USB Dock for Tab Active3 & Tab Active5

OVERVIEW

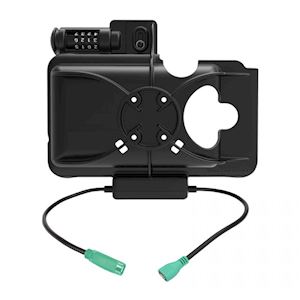

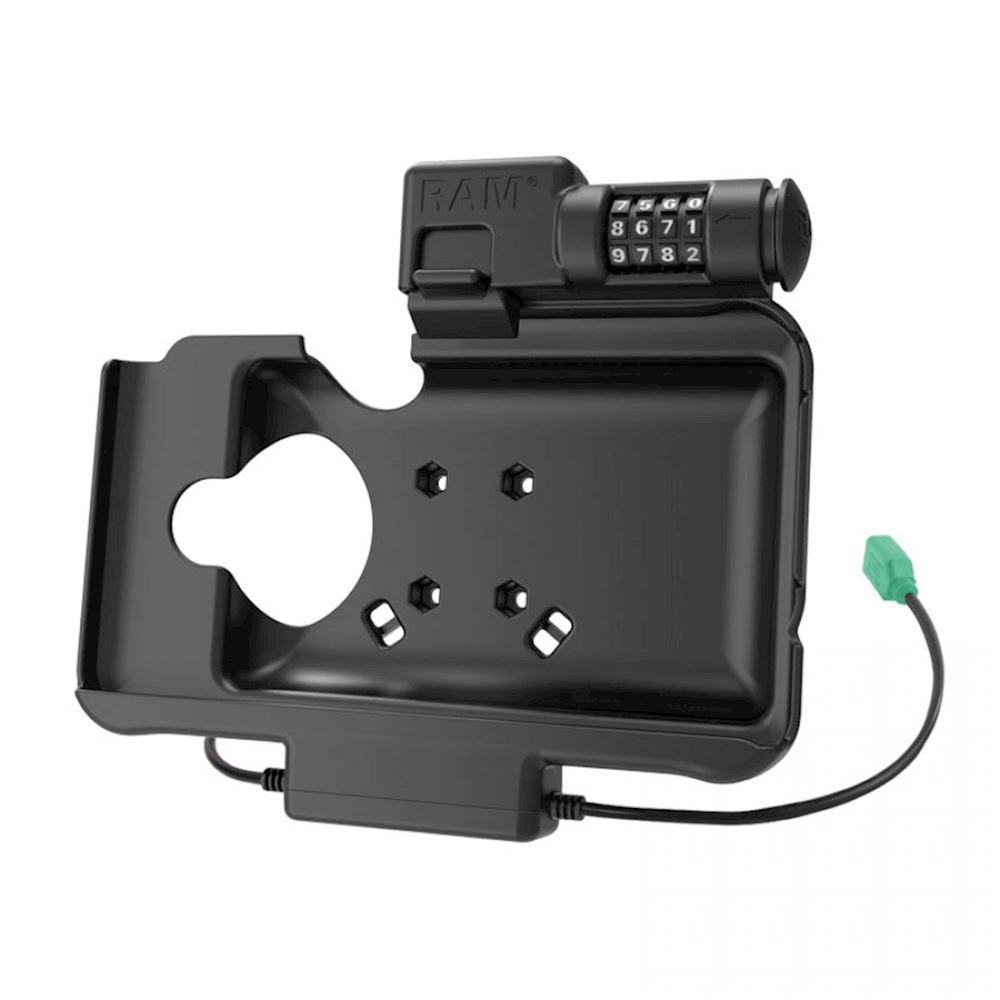

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active5 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a combination lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern.

HARDWARE INCLUDED

Assembly Hardware

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

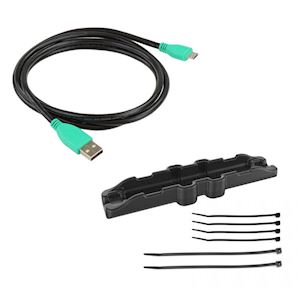

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(4) Large Cable Ties

(6) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"

Height: 7.75"

Depth: 3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

This product will not support IntelliSkin®

Mount using a round ball base (RAM-202U recommended)

Device speakers and mics exposed

Device headphone jack exposed

Zip tie locations for cable retention

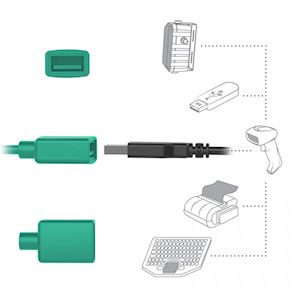

Includes dual USB Type A cable and cable clamp with zip ties

mUSB female pigtail for power
