Key-Locking Powered Cradle for Samsung Tab Active Pro & Tab Active4 Pro

Key-Locking Powered Cradle for Samsung Tab Active Pro & Tab Active4 Pro

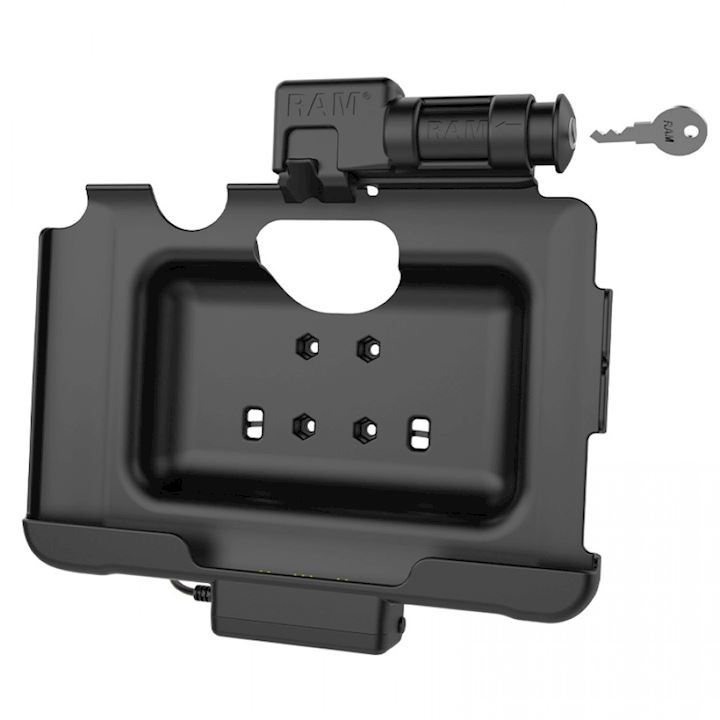

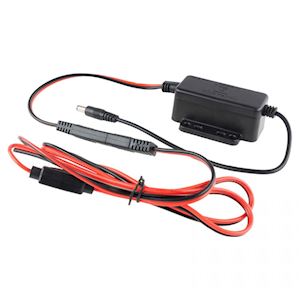

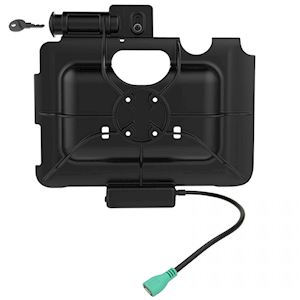

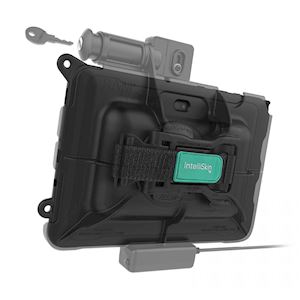

This powered cradle for the Samsung Tab Active Pro & Tab Active4 Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a keyed lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws

(4) #8-32 Nylock Nuts

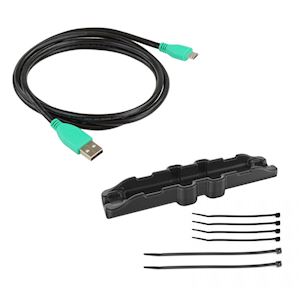

(1) GDS® Genuine USB 2.0 Straight Cable

(1) Optional Cable Clamp Housing

(2) Large Cable Ties

(7) Small Cable Ties

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

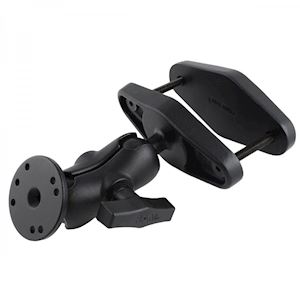

Mount using a round ball base (RAM-202U recommended)

Device speakers and mics exposed

Device headphone jack exposed

NFC reader accessible while in dock

mUSB female pigtail for power
