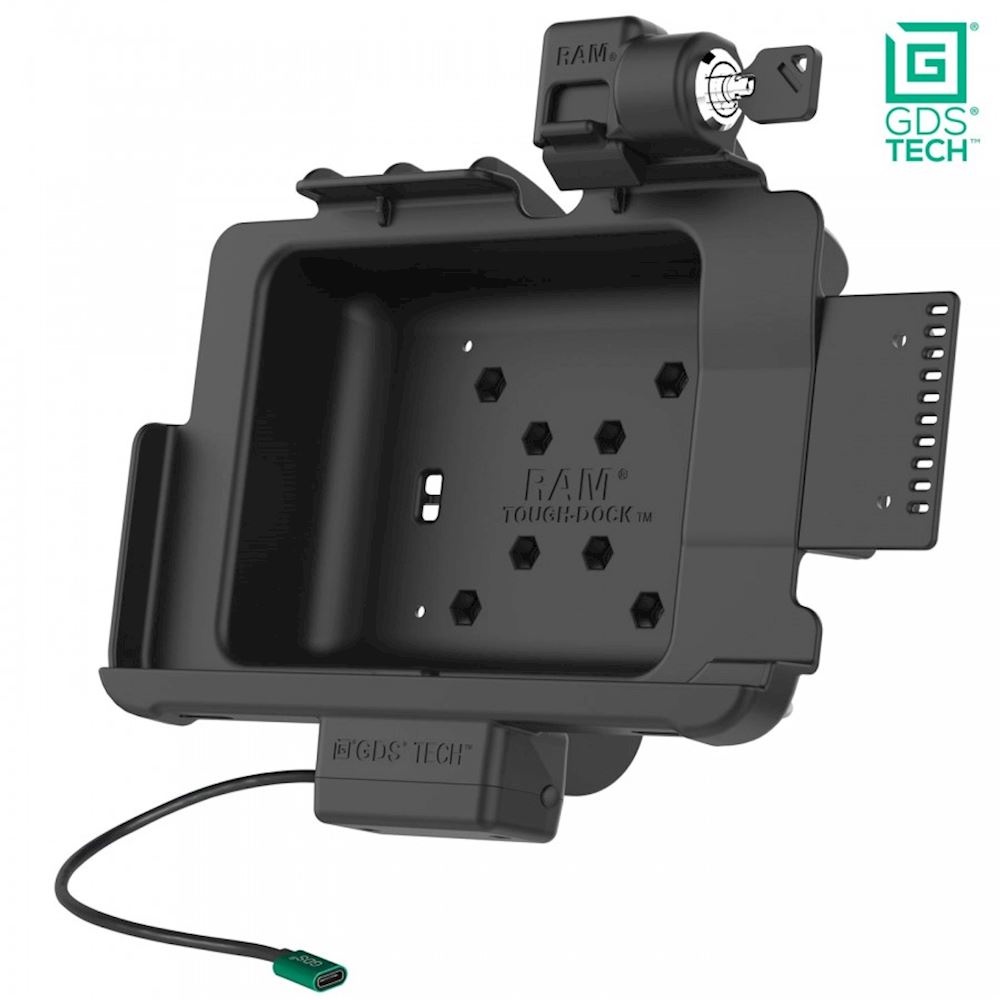

Locking GDS® Powered Dock for Zebra ET4x 10" Tablet with IntelliSkin®
In stock
Same day despatch on orders placed before 4pm
Code: RAM-GDS-DOCKL-ZE21P
FEATURES
Powered dock featuring GDS® Technology™ perfectly secures the Zebra ET40 & ET45 10" tablets with IntelliSkin® Next Generation protective sleeve ; includes set of keys for locking capabilities; MIL-STD 810G Shock and Vibration tested

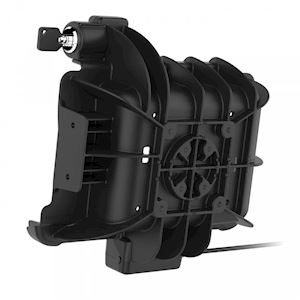

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
Backed by a lifetime warranty
OVERVIEW

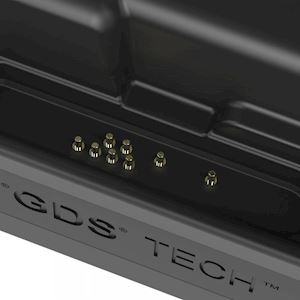

Featuring GDS® Technology™ for charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's USB Type-C connector. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
HARDWARE INCLUDED
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
HOLE PATTERN
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
OUTPUT VOLTAGE
5V - 20V @ 3A
POWER OUTPUT
60W
INPUT CONNECTOR
USB Type-C
INPUT CABLE LENGTH
.21 Meter
CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
WARRANTY
3 year warranty
WEIGHT
0.83kg
