GDS® Locking Vehicle Dock for Samsung Tab A 10.5

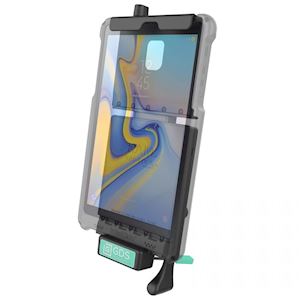

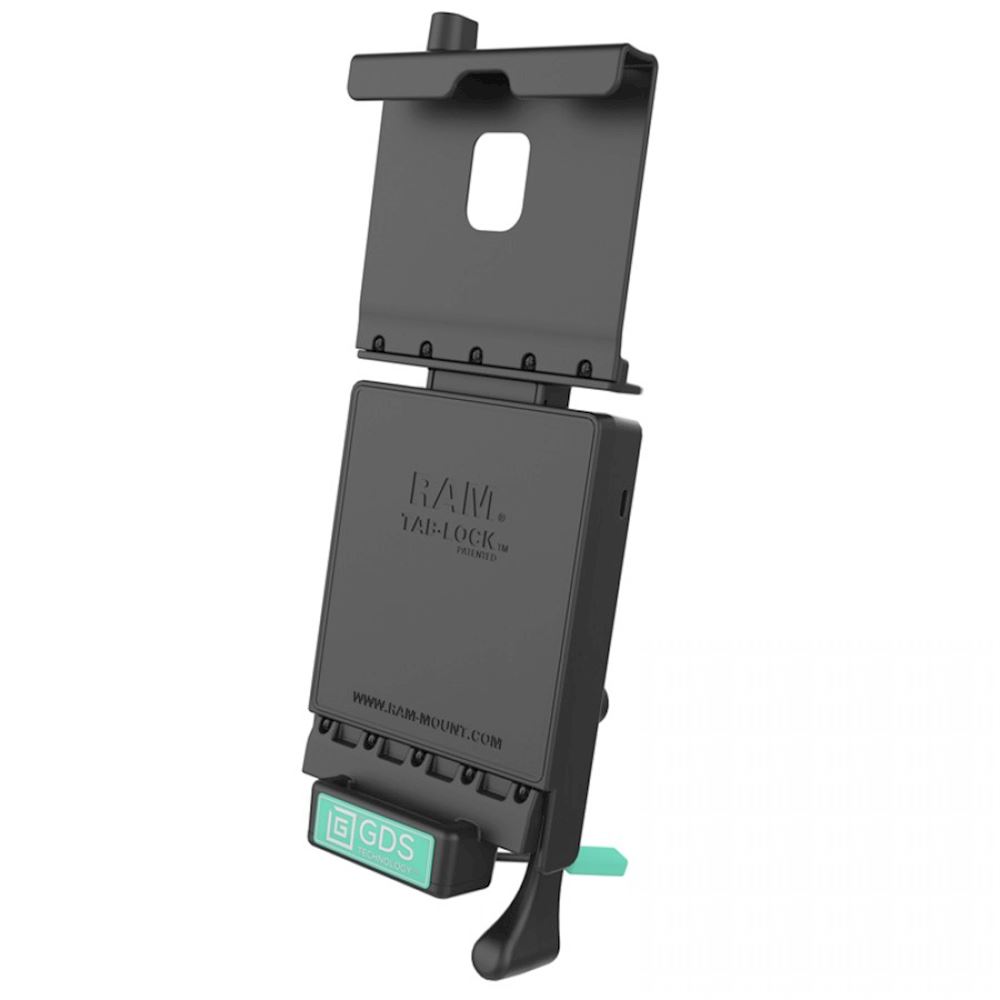

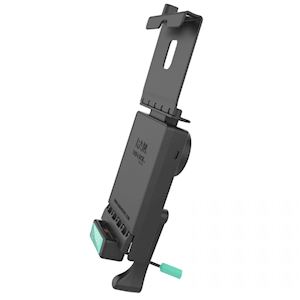

The RAM® Locking Vehicle Dock with GDS® is a spring-loaded, quick-release cradle with a keyed lock that offers a secure fit with easy access to the mounted tablet. This docking station is compatible with the Samsung Galaxy Tab A 10.5 SM-T590 (Wi-Fi) and SM-T597 (LTE) with IntelliSkin®. The integrated GDS® platform enables data sync and charging capabilities. Without the need to remove the IntelliSkin® sleeve from the device, users can quickly and efficiently mount the tablet in the vehicle dock while keeping the device charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

Compatible Devices:

Samsung Galaxy Tab A 10.5 with IntelliSkin®

HARDWARE INCLUDED

Assembly Hardware

(2) M4 x 32mm Machine Screws

(2) M4 Nylock Nuts

(2) #8 x 5/8" Sheet Metal Screws

(1) Cable Clamp

(2) Keys

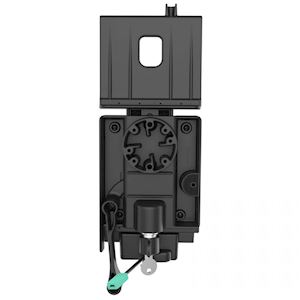

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 2A

CONNECTOR TYPE

USB Type-C

WEIGHT

1.47 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A
