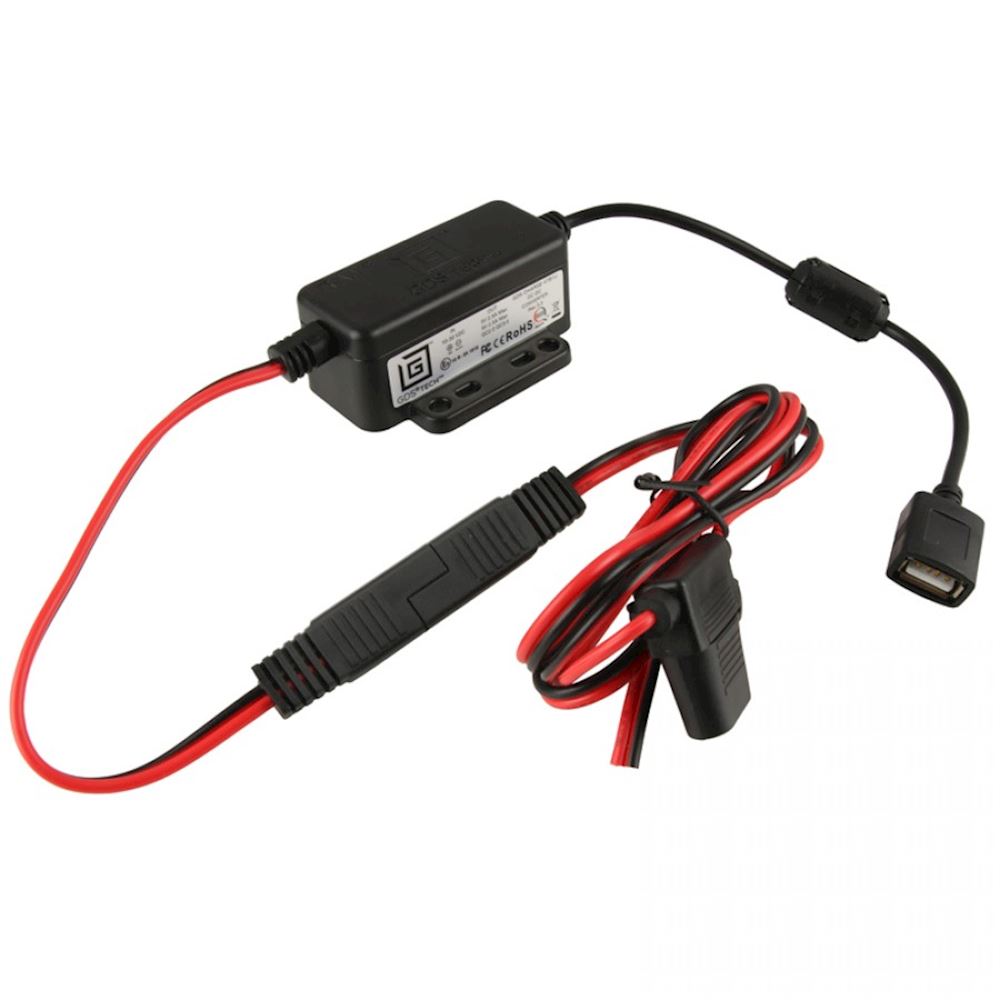

GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector
In stock
Same day despatch on orders placed before 4pm
Code: RAM-GDS-CHARGE-V7B1
FEATURES
Hardwire charger includes USB Type-A female connector
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty
OVERVIEW
The GDS® Modular Hardwire Charger with Female USB Type A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less.
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
10V - 30V DC
OUTPUT VOLTAGE
5-9VDC
OUTPUT CURRENT
2.5A max
INPUT CONNECTOR
Female USB Type A
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
.2 Meters
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
WEIGHT
130g
WARRANTY STATUS
3 year warranty
