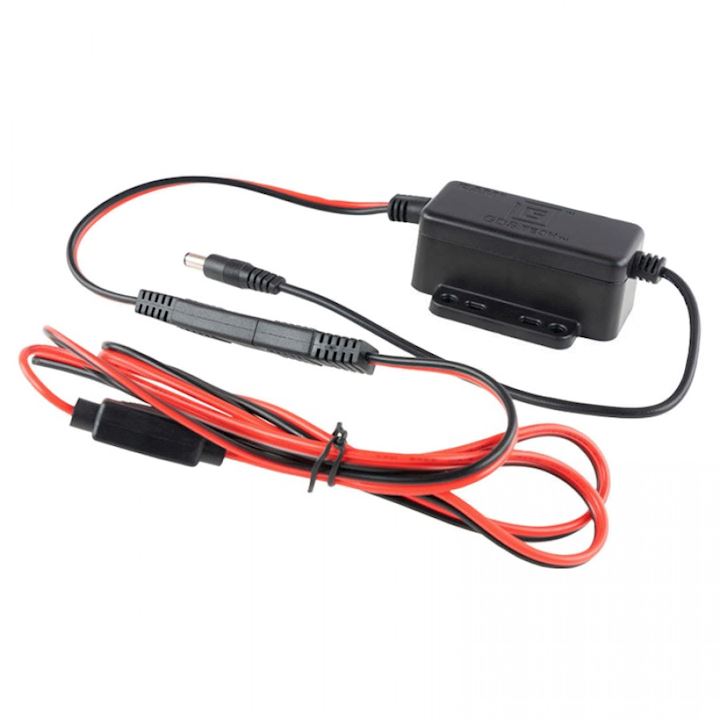

GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm

FEATURES

Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications.

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

20V-60V DC

OUTPUT VOLTAGE

12VDC

OUTPUT CURRENT

3.5A max

INPUT CONNECTOR

Male 5.5mm OD x 2.5mm ID Barrel Connector

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CERTIFICATIONS

CE Certification

e-Mark Certification

RCM Certification

FCC Certification

WARRANTY

3 year warranty

WEIGHT

0.13kg
