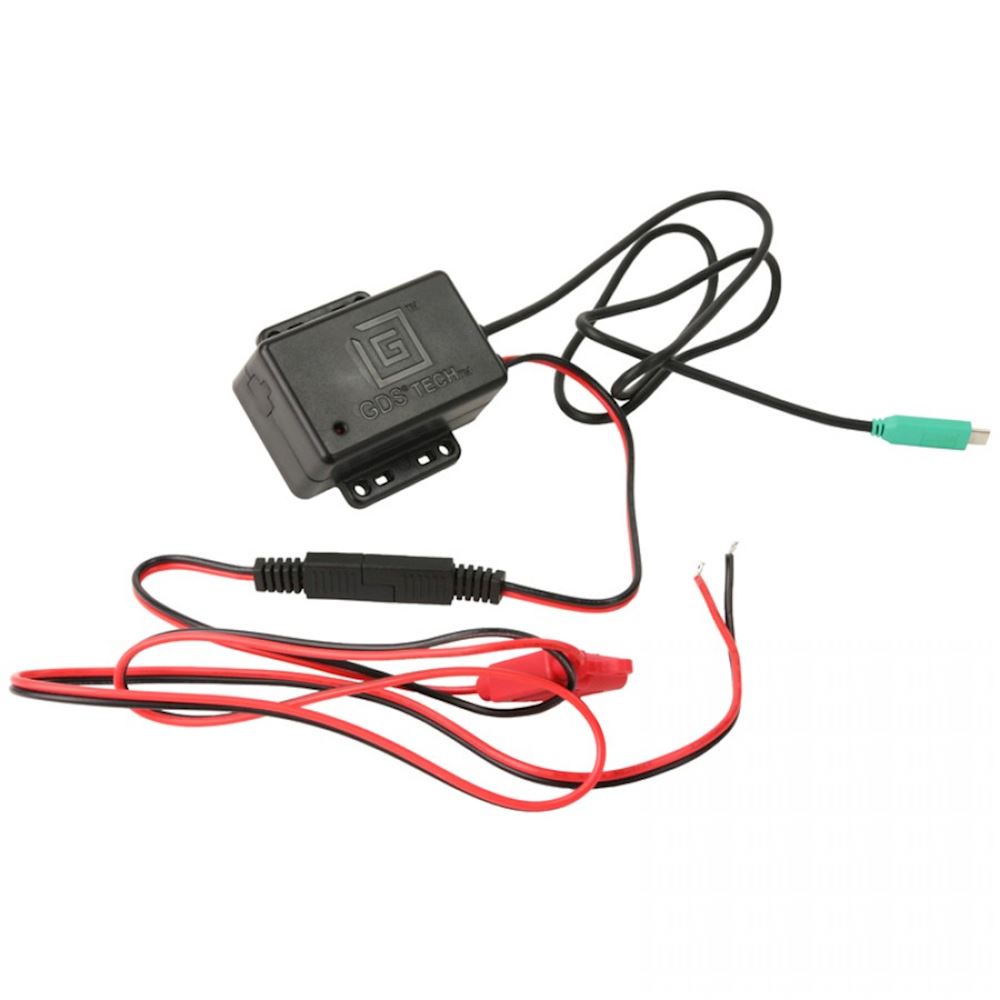

GDS® Hardwire USB Type-C Power Delivery Charger with Male Connector

FEATURES

- Hardwire charger includes USB Type-C male connection with input of 12-24VDC and output of 12VDC @ 2A max (supports USB PD3.0 and PPS)

- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

- Backed by a 3-year warranty

OVERVIEW

The GDS® Modular Hardwire Charger with USB Type-C Male Connector is the ideal solution for providing power to any Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Hub™ delivers Type-C power to your device. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new GDS® Hub™.

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

12V - 24V (Vehicles)

OUTPUT VOLTAGE

12VDC @ 2A (supports USB PD3.0 and PPS)

POWER OUTPUT

37.5W Total

OUTPUT CURRENT

3A max

INPUT CONNECTOR

Male USB Type-C

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

1 Meter

OPERATING TEMPERATURE

-20°C to +70°C

STORAGE TEMPERATURE

-40°C to +85°C

COMPLIANCE

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

CERTIFICATIONS

FCC, IC, CE RCM, WEEE, RoHS Compliant

USB Power Delivery 2.0 and 3.0 Support

WEIGHT

0.20 kg.

WARRANTY STATUS

3 year warranty
