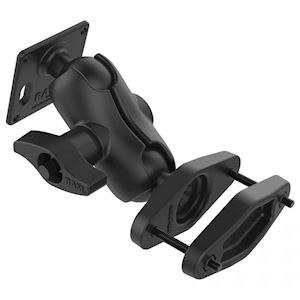

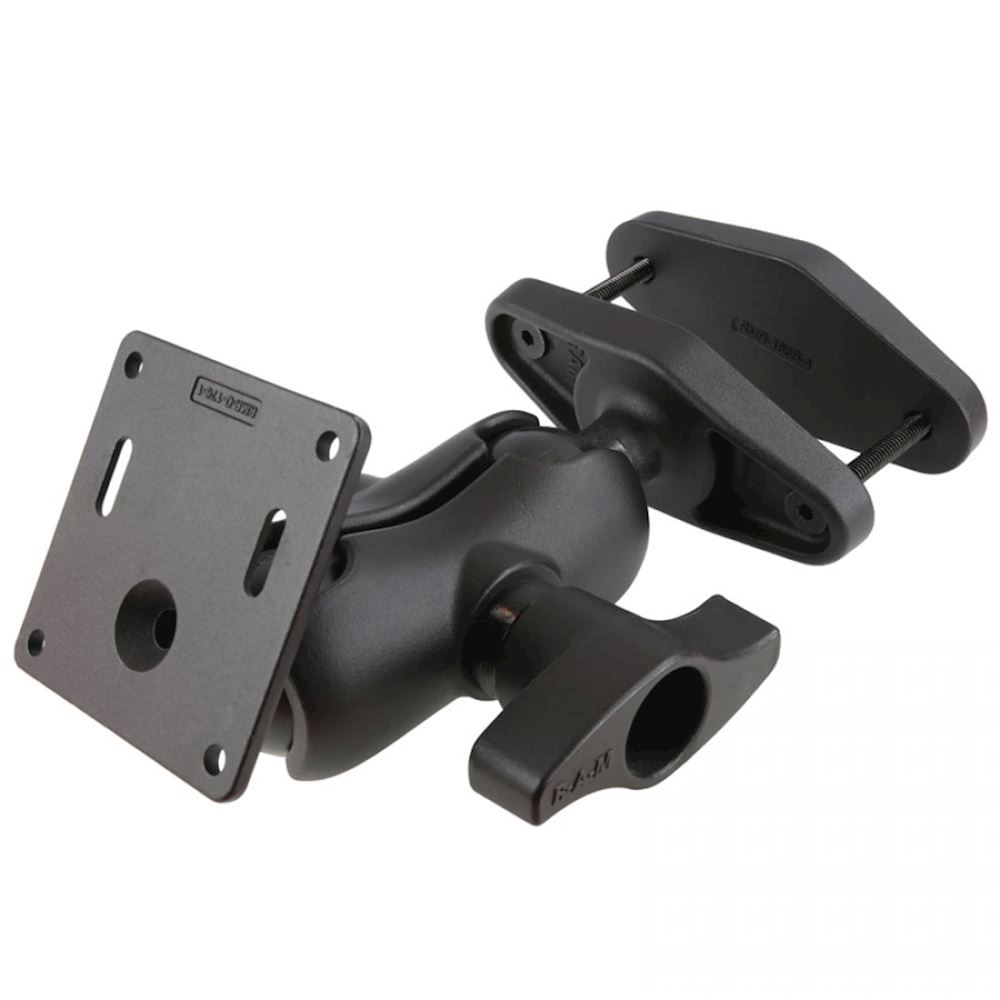

RAM® 4" Square Post Clamp Mount with 75x75mm VESA Plate

FEATURES

- D Size ball with 75 x 75mm VESA plate connects to monitors and rugged tablet PC's with the matching hole pattern

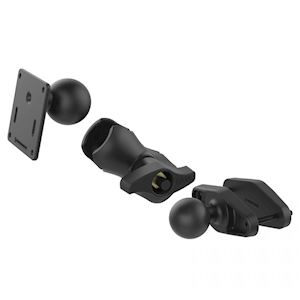

- Includes 4" clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 5.1" and socket-to-socket length of 3.6"; ball and socket technology allows for near-infinite adjustability

- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments

- Backed by a lifetime warranty

OVERVIEW

This ideal forklift mount consists of a D size short double socket arm, a square D size plate with a 75 x 75mm VESA hole pattern and 4" clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. RAM® Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws

(2) 5/16"-18 Nylock Nuts

CLAMP RANGE

4" max width

SOCKET-TO-SOCKET LENGTH

3.6"

HOLE PATTERN

75 x 75mm VESA

PLATE SIZE

3.625" x 3.625"

BALL/SOCKET SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 2.72 kg

Heavy-Duty Use: 2.26 kg

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag

WEIGHT

1.7 kg
