RAM® X-Grip® Large Phone Mount with RAM® Tough-Claw™ Small Clamp Base

OVERVIEW

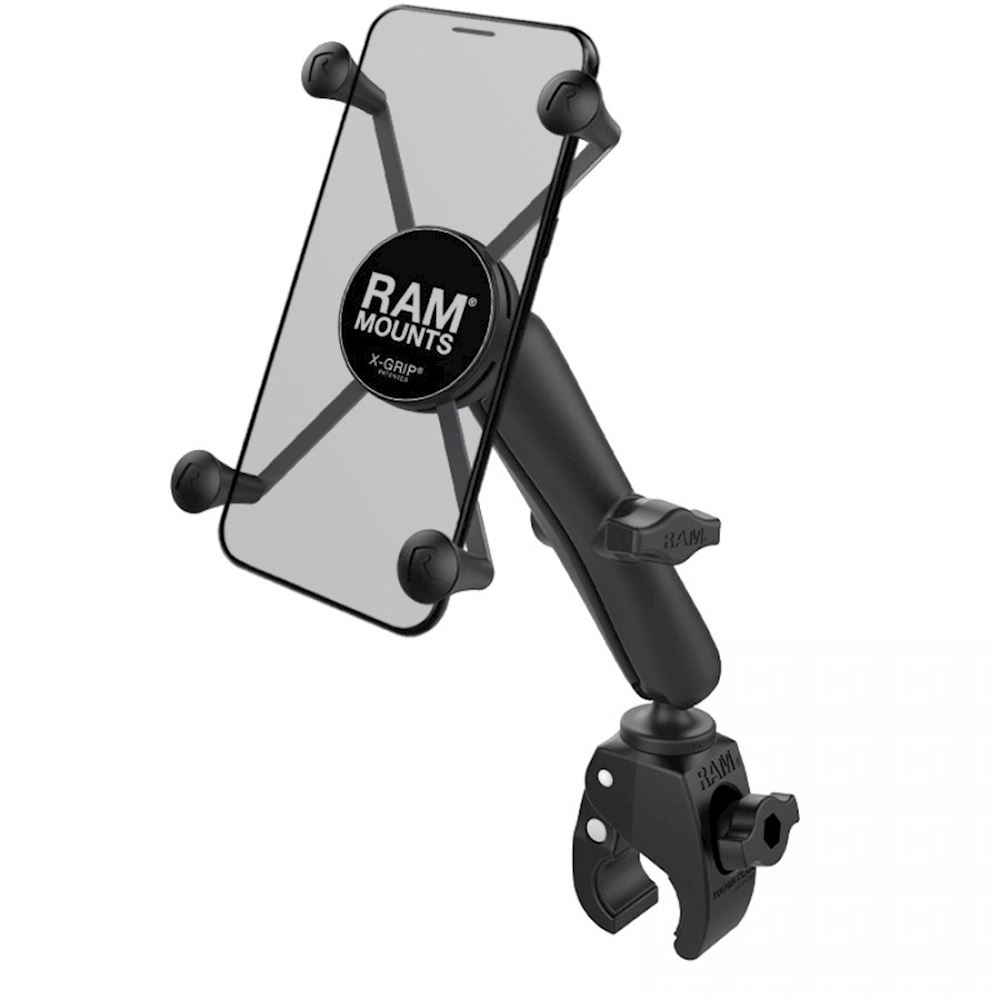

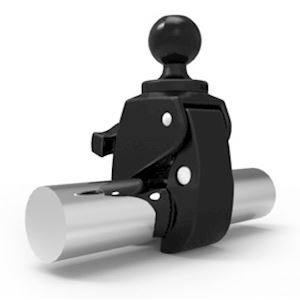

The RAM-B-400-C-UN10U consists of the Tough-Claw™ rail clamp base, LONG length double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

(1) Optional Tether

(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

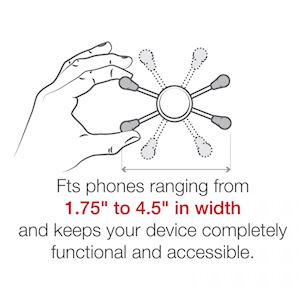

Width Range: 1.75" - 4.5"

Depth Range: .875" max

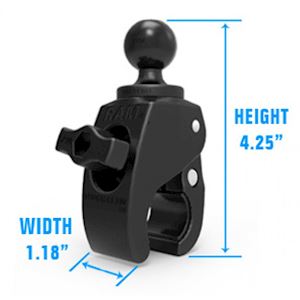

CLAMP RANGE

.625" - 1.14" diameter

SOCKET-TO-SOCKET LENGTH

5.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs

Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminium

High strength composite

Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.45kg
