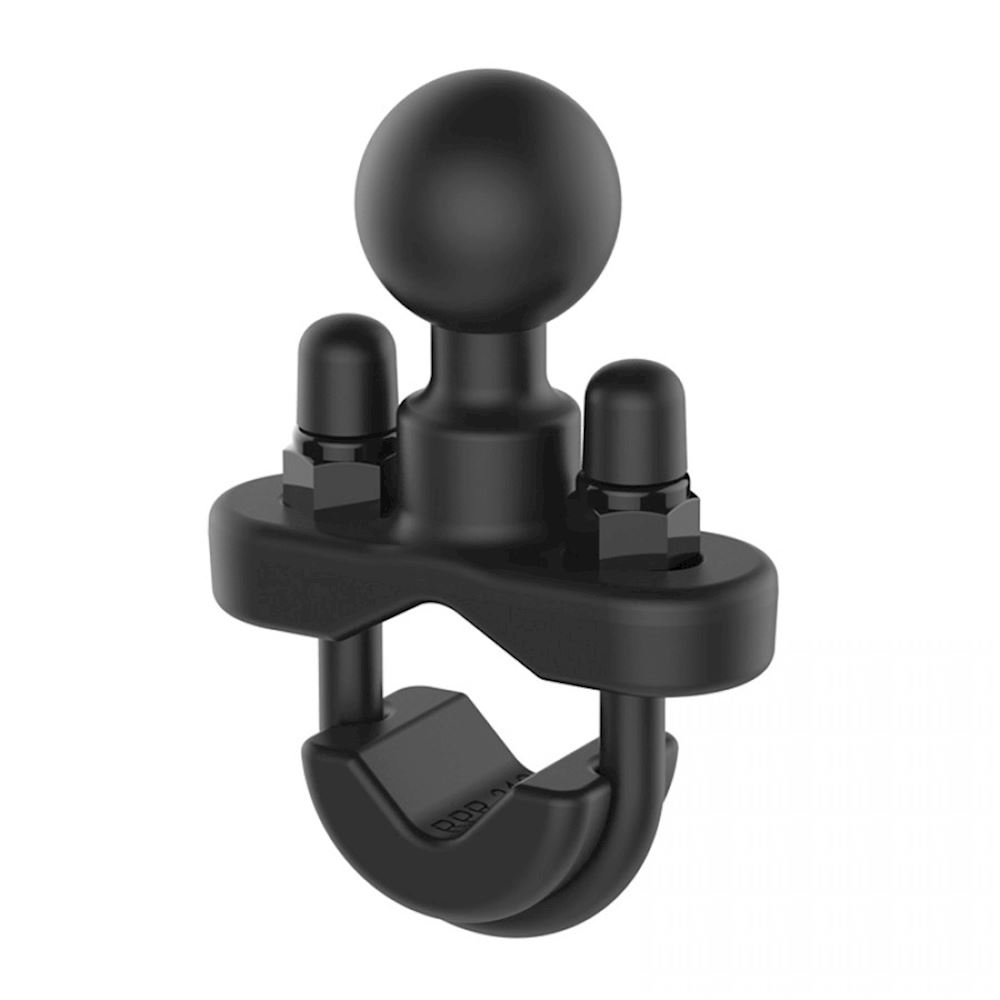

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter

FEATURES

- Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt

- Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability

- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments

- Backed by a lifetime warranty
OVERVIEW

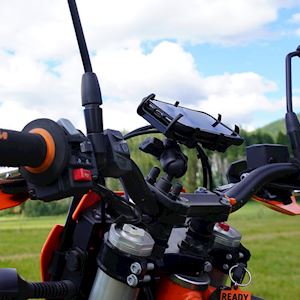

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5".

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer
CLAMP RANGE

.5" - 1.25" diameter
BALL/SOCKET SIZE

B Size (1")
WEIGHT CAPACITY

Standard Use: 900g

Heavy-Duty Use: 450g
MATERIALS

Marine-grade aluminium
PACKAGING TYPE

Poly Bag
WEIGHT

127g
