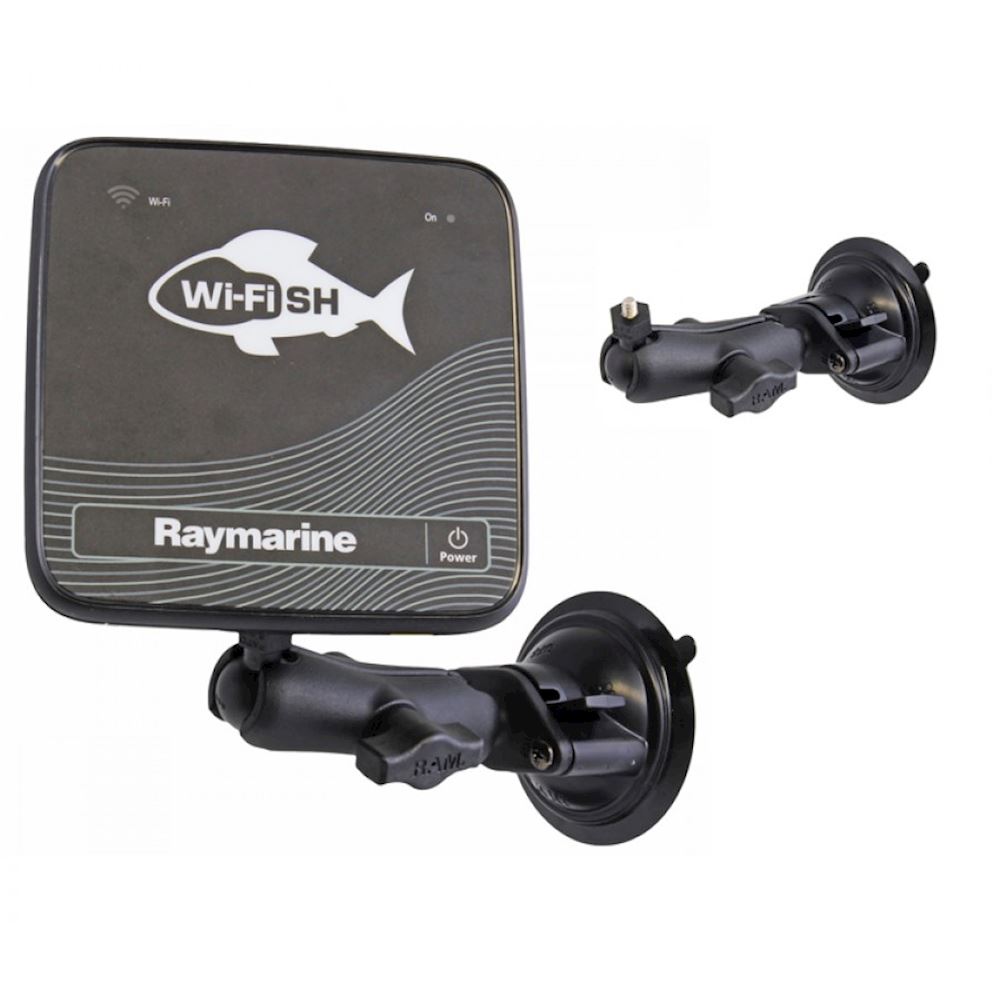

Suction Mount for Raymarine Dragonfly-4/5 WiFish Devices

The RAM-B-224-1-379-M616 consists of a 3.3" twist lock suction cup base, STANDARD length double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces.
The RAM-B-224-1-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows
for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting
options to you.
Compatible Devices:
Raymarine Dragonfly-5 M
Raymarine Dragonfly-5 DVS
Raymarine Dragonfly-5 Pro
Raymarine Dragonfly-4 DV
Raymarine Dragonfly-4 DVS
Raymarine Dragonfly-4 PRO
Raymarine WiFish
Material:
High Strength Composite & Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
