Dual Articulating Suction Cup EFB Mount with Arm & Retention Knob, and Large Tab-Tite™ Tablet Holder

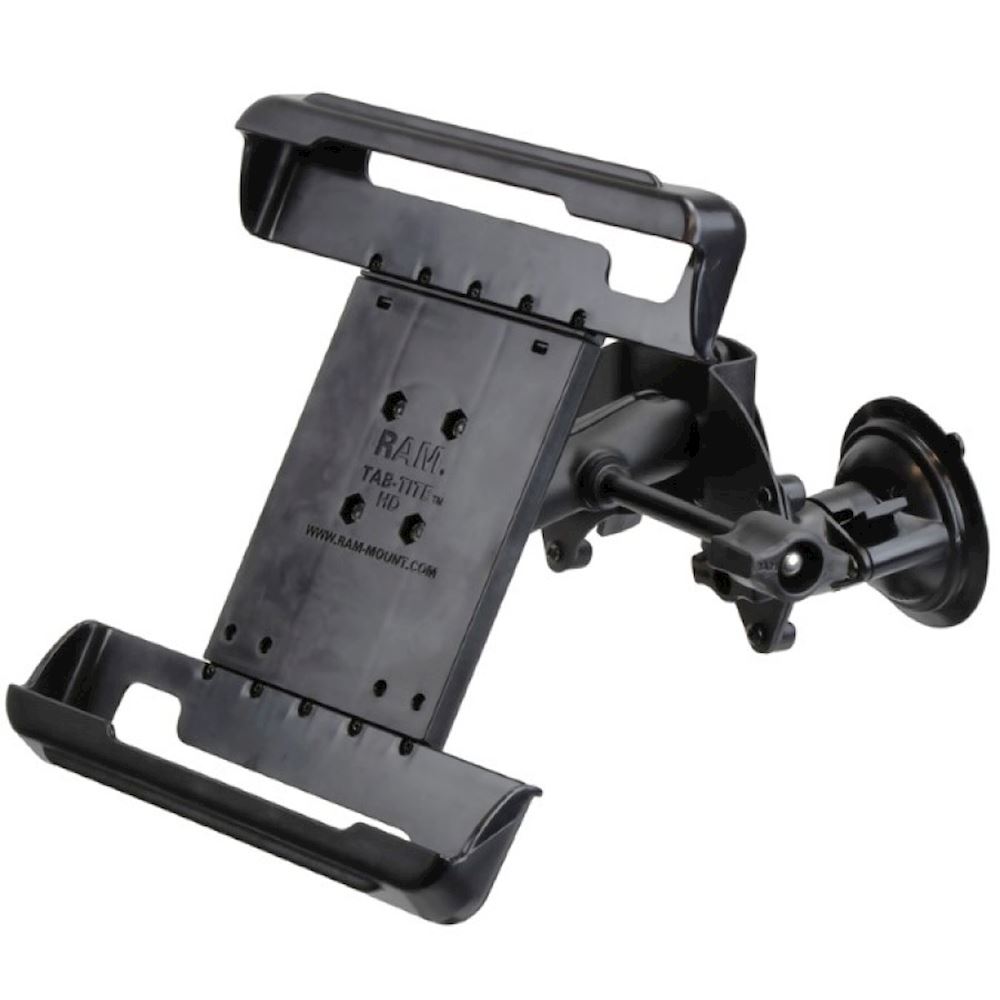

The RAM-B-189-PIV1-TAB10-ALA1_KR consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 9.75" - 12"

Width Range: 6.38" - 8.62"

Depth Range: .13" - 1"

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Powder coated steel

Marine-grade aluminium

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.04 lbs.
