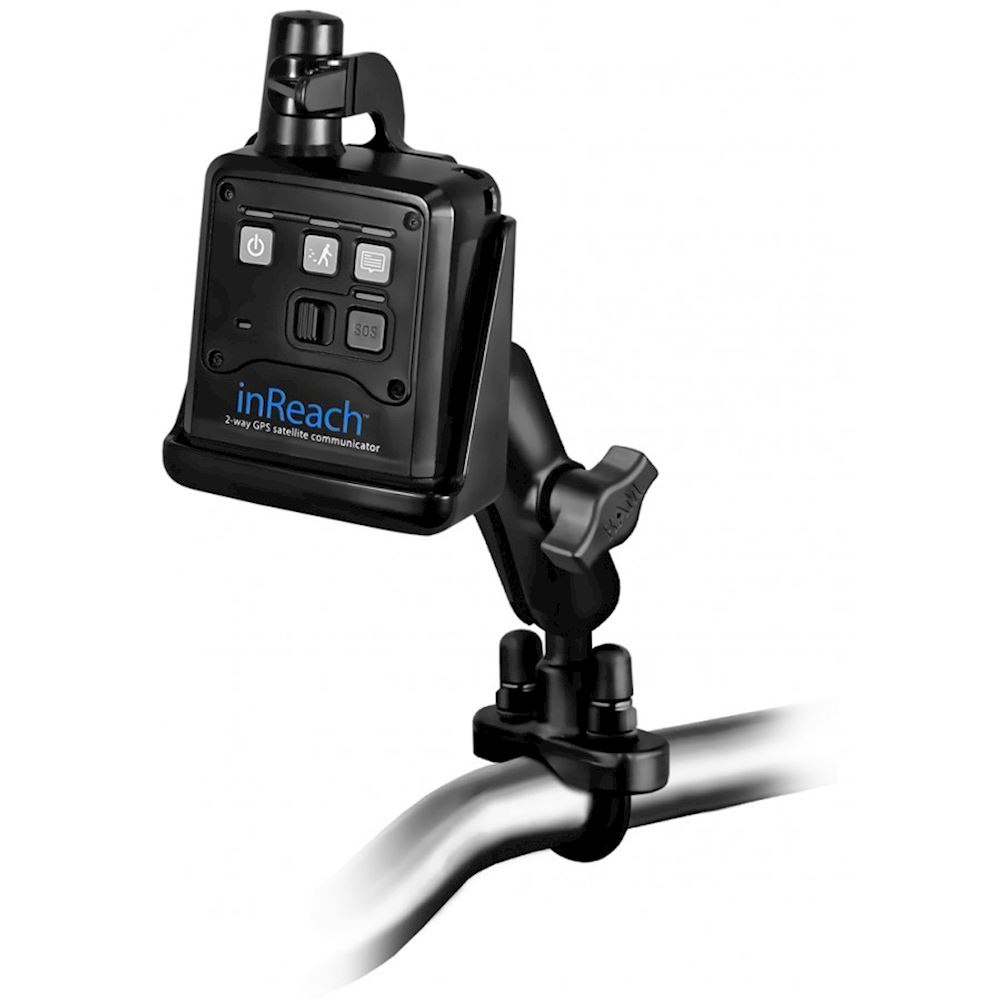

RAM® Handlebar U-Bolt Double Ball Mount for DeLorme inReach
In stock
Same day despatch on orders placed before 4pm
Code: RAM-B-149Z-DEL2
OVERVIEW

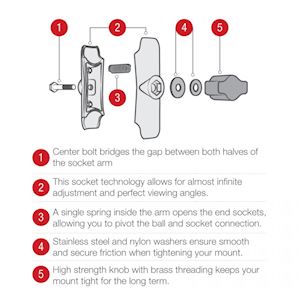

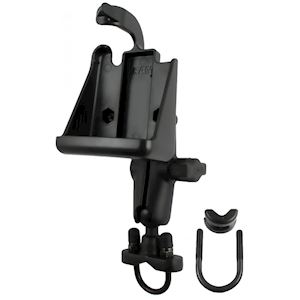

The RAM-B-149Z-DEL2U consists of a zinc coated u-bolt base, standard length double socket arm and high strength composite cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 0.9 kg
Heavy-Duty Use: 0.45 kg
MATERIALS
Marine-grade aluminium
High strength composite
PACKAGING TYPE
Poly Ba
WEIGHT
0.45 kg
