U-Bolt Mount, Standard 1" Ball Arm & Round Camera Base
In stock
Same day despatch on orders placed before 4pm
Code: RAM-B-149Z-C1

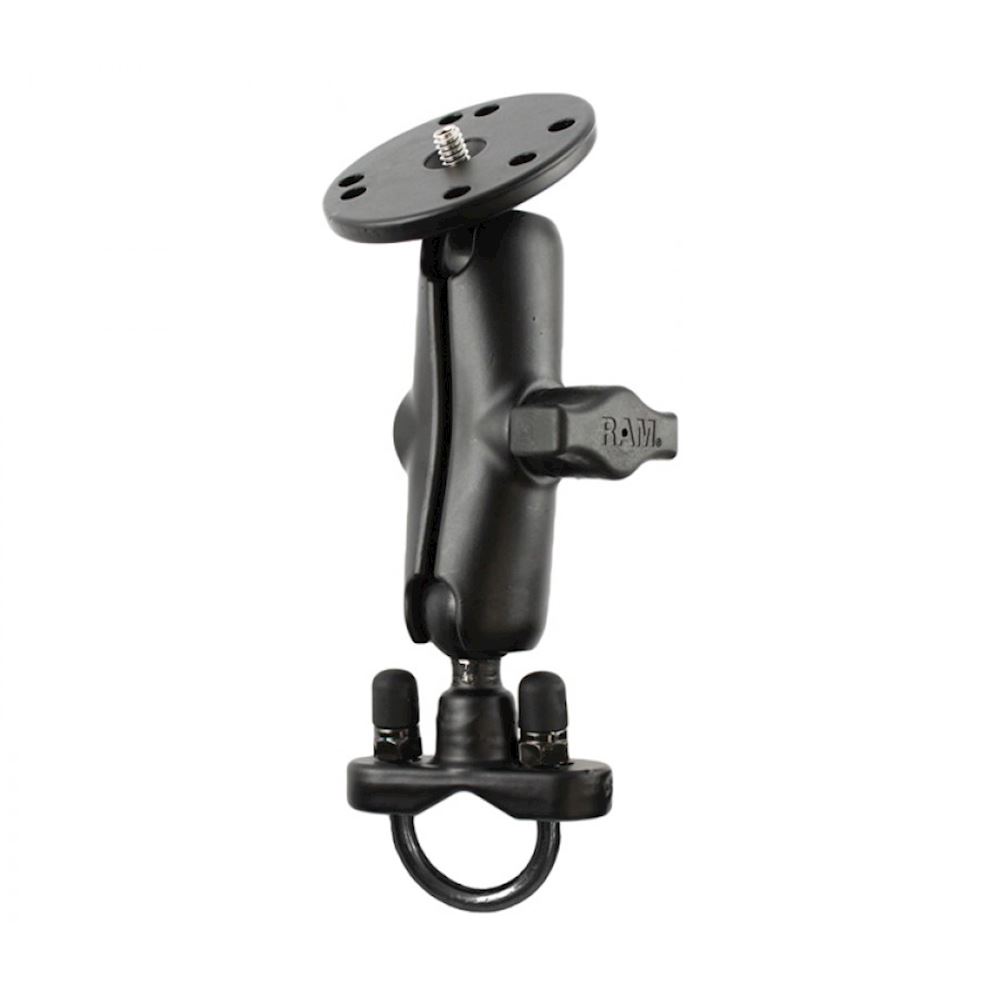

This is a universal mounting solution for cameras. The RAM zinc coated u-bolt rail base consists of a 1" diameter ball and socket system with RAM universal 1/4"-20 camera thread centered on a 2.5" diameter plate. The zinc coated metal u-bolt and nuts included will fit a circular rail between 0.5" to 1.25" in diameter. The male 1/4" thread in the middle of the round adapter plate will connect to the standard female thread found at the bottom of most cameras.
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Components:
RAM-B-201
RAM-B-231Z
RAM-B-202A
Note:
The cast bracket accepts 1" and 1.25" u-bolts which are both are supplied in the kit. Also included is a black plastic shim that sits inside the u-bolt for attaching to rails 0.5" - 1" in diameter.
