Quick-Grip™ XL Phone Mount with Handlebar U-Bolt Base

FEATURES

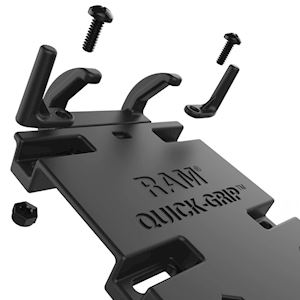

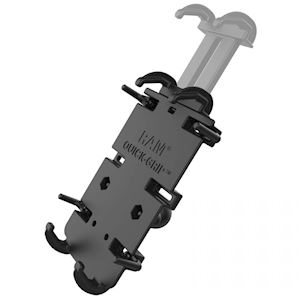

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

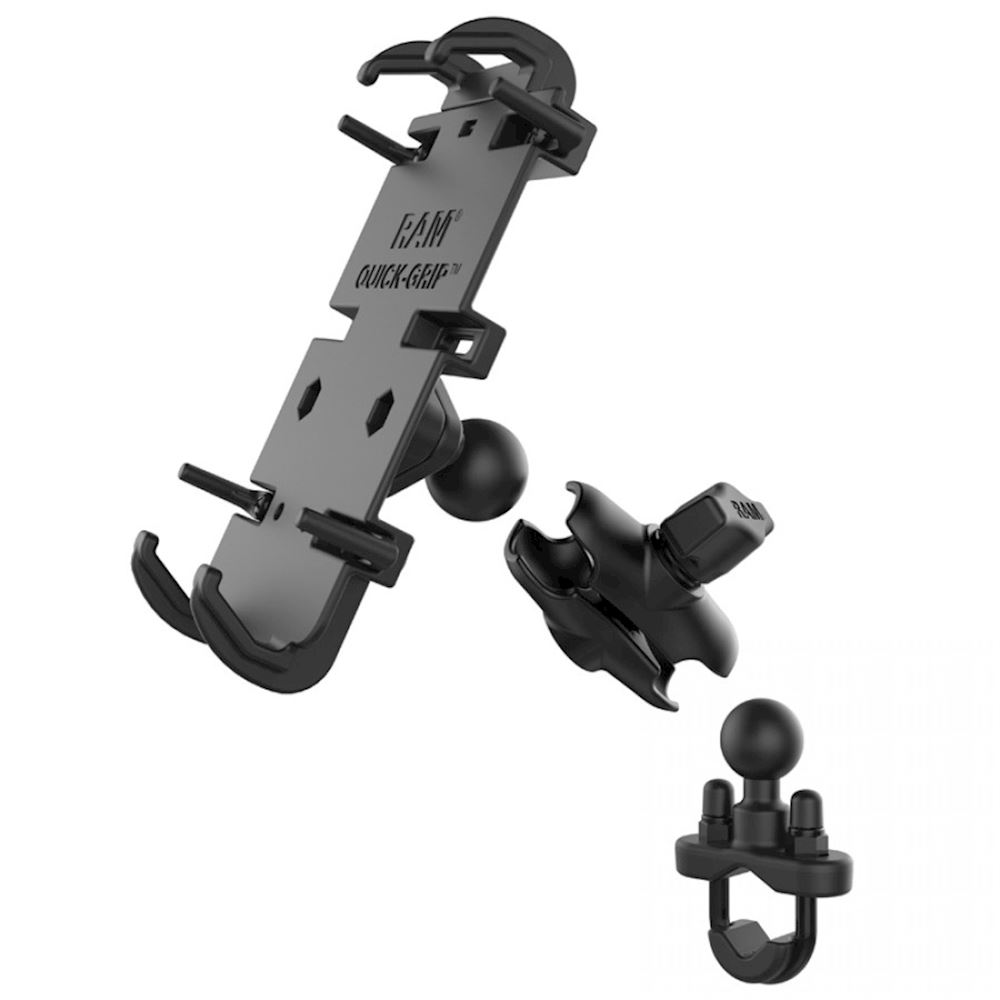

- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments

- Backed by a lifetime warranty

OVERVIEW

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.

HARDWARE INCLUDED

Assembly Hardware

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 5.75" - 7.25"

Width Range: 2.625" - 3.625"

Max Depth: .72"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 900g

Heavy-Duty Use: 450g

MATERIALS

Marine-grade aluminium

High strength composite

WEIGHT

360g
