Brake/Clutch Reservoir U-Bolt Mount for the TomTom Rider 2 and Urban Rider

OVERVIEW

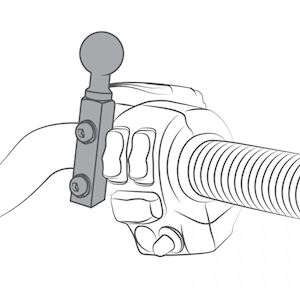

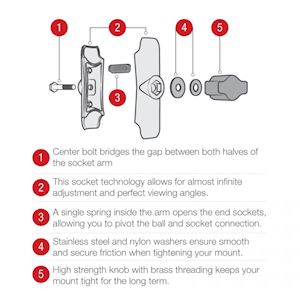

The RAM-B-174-TOM1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and custom TomTom base adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom TomTom adapter base connects to the back of the factory cradle that is included with the purchase of the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-TOM1U match up with the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

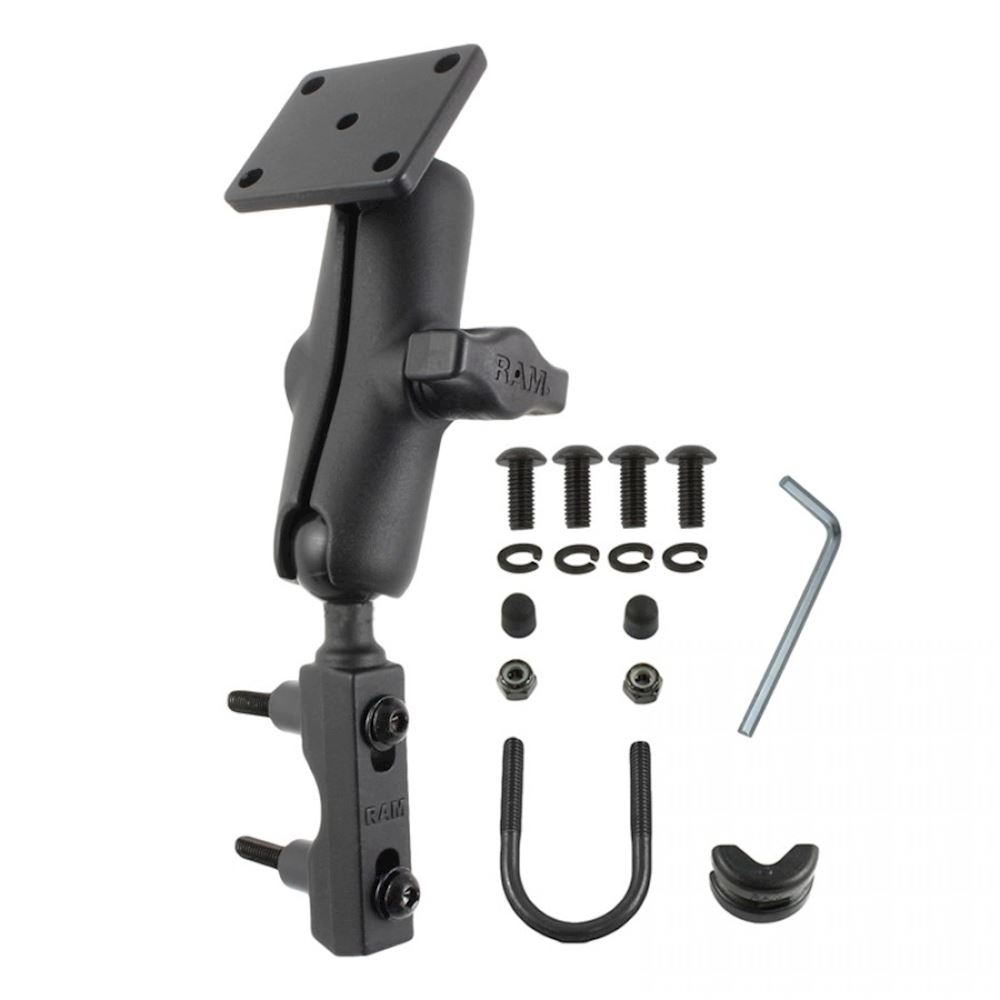

HARDWARE INCLUDED

(4) M5 x 12mm Machine Screws

(4) M5 Stainless Steel Lock Washers

(1) M3 Hex Key Wrench

(2) M6 x 55mm Hex Bolts

(2) #1/4-20 x 2" Hex Bolts

(2) 1/2" Spacers

(2) 1/4" Split Lock Washers

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 0.9kg

Heavy-Duty Use: 0.45kg

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag

WEIGHT

0.34kg
