RAM® Tough-Charge™ X-Grip Waterproof Wireless Charging Suction Cup Mount

FEATURES -

Waterproof Qi wireless phone charging cradle features spring-loaded RAM X-Grip technology and 10W maximum output

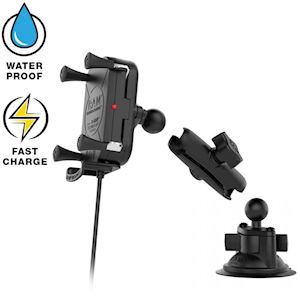

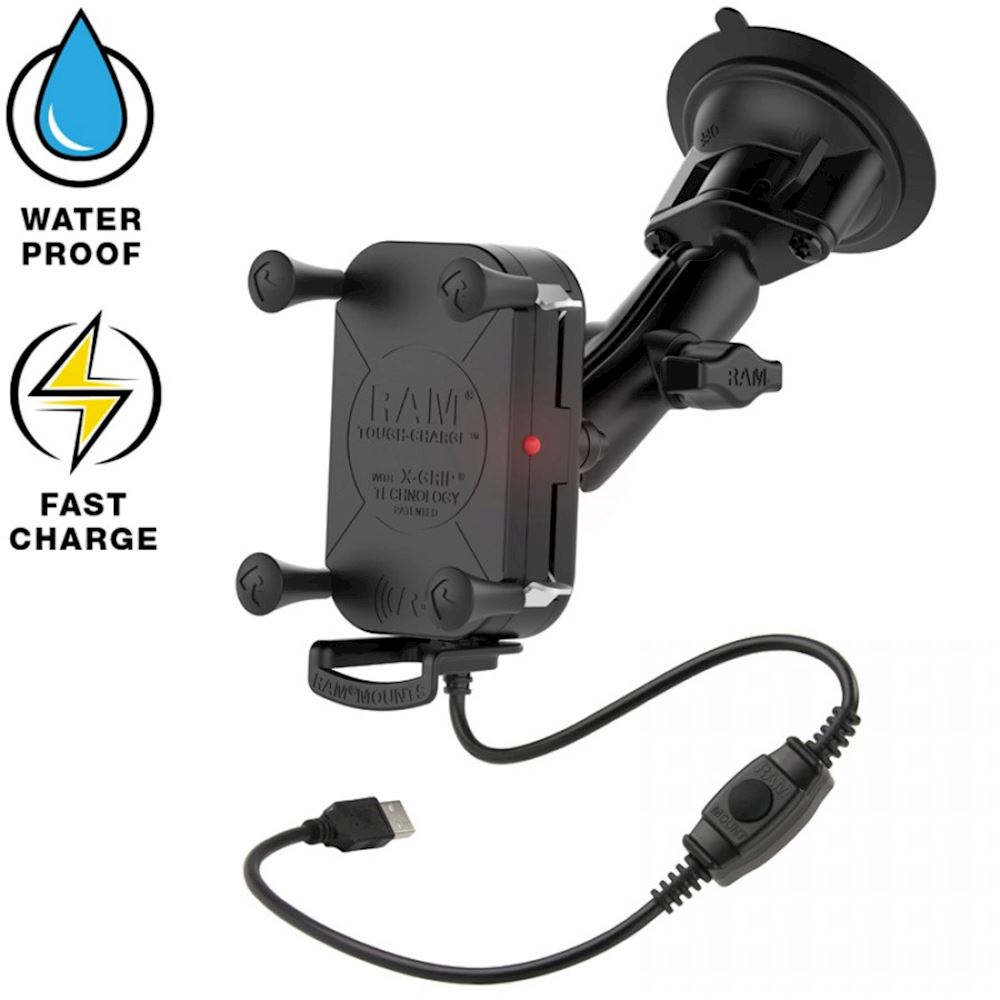

Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM Twist-Lock suction cup

Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty

OVERVIEW

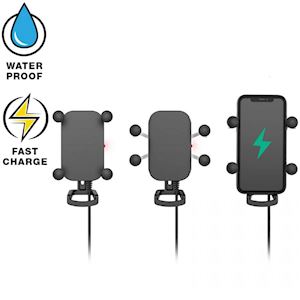

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

HARDWARE INCLUDED

(1) Safety Tether

(1) Glue Tube for Rubber Caps

(1) Cradle Leg

(1) Cradle Leg Cover

(1) Silicon sleeve for USB waterproof connection

(1) 1.2 Meter USB Extension Cable

(4) Small zip ties

(2) Large zip ties

HOLDER DIMENSIONS

Width Range: 2.375" - 3.25"

Depth Range: .875" max

SUCTION SIZE

3.3" Diameter

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs

Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminium

High strength composite

Stainless steel

PACKAGING TYPE

Retail Box

POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A

Output: 5W / 7.5W / 10W

Conversion Efficiency: 85% Max

Maximum Case Thickness: 6mm

Working Frequency: 110-205KHZ

Product Standard: WPC v.1.2.4

Qi Compatible

Compatible with QC2.0/QC3.0 power supplies

INPUT CONNECTOR

USB Type-A Male

INPUT CABLE LENGTH

20" with optional 1.2M extension cable

COMPLIANCE

Over current protection, short circuit protection and over temperature protection

CERTIFICATIONS

FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

WEIGHT

0.77kg.

WARRANTY STATUS

1 year warranty

ADDITIONAL INFORMATION

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

iPhone 12 products support a new and proprietary wireless charging standard not supported in this product. User experience might include what is perceived to be slower charging, however this is due to higher power consumption of the iPhone 12 in certain use cases.
