Single Swing Arm Mount Horizontal Fixing
In stock
Same day despatch on orders placed before 4pm
Code: RAM-109H
The RAM single swing arm mount consists of a 6" long bent swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

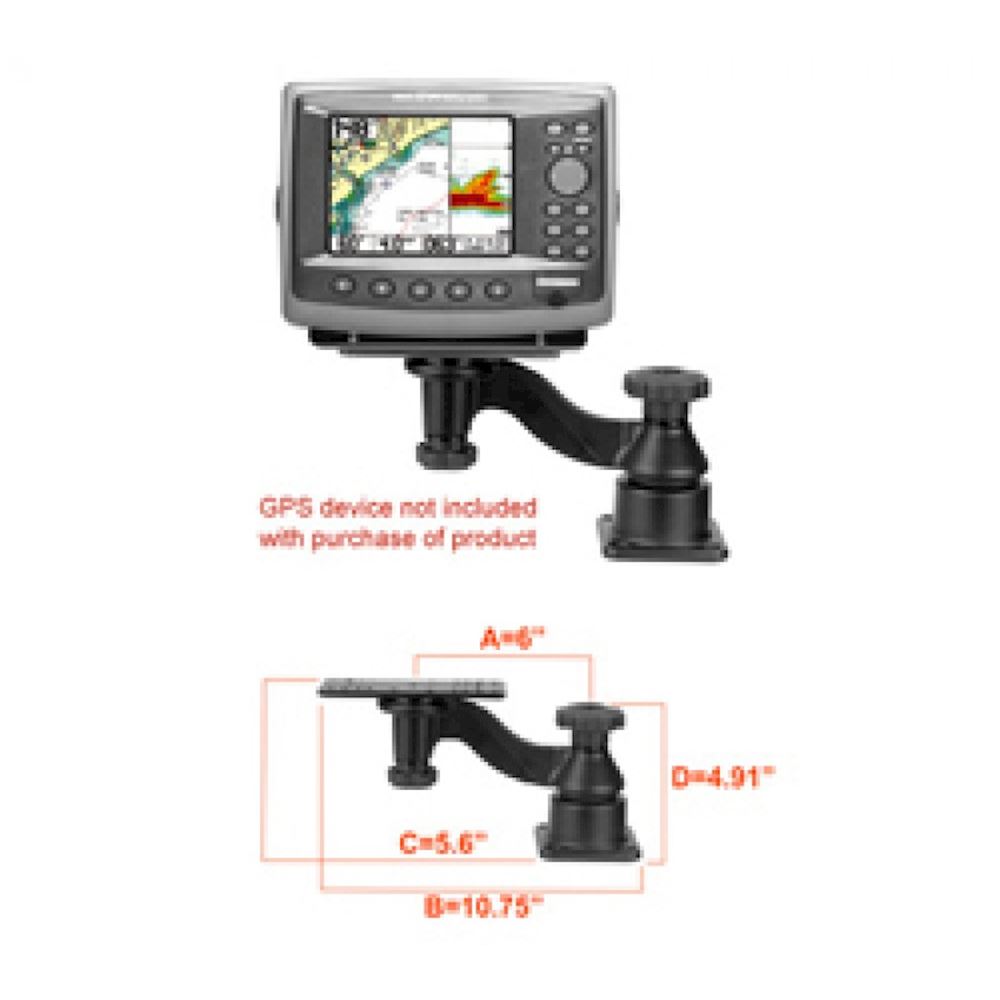

RAM-109H Dimensions
A. Center of knob to center of ball socket: 6"
B. Overall length of swing arm assembly: 10.75"
C. Overall height: 5.6"
D. Height from base to top of knob: 4.91"
Colour:
Black Powder Coat
Material:
Powder Coated Marine Grade Aluminium
Components
RAM-109H-B
RAM-111BT
