RAM® Powered Mount for Samsung Tab Active4 Pro with Backing Plate

FEATURES

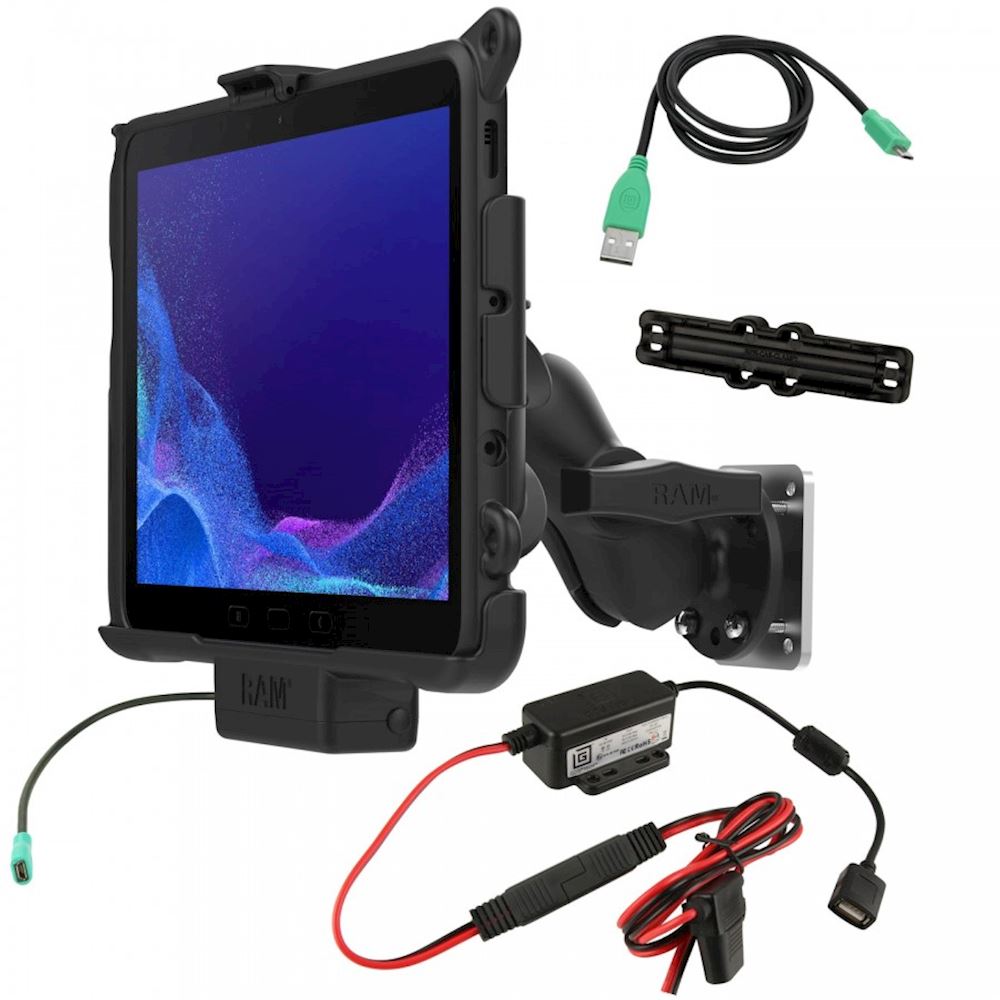

Kit includes RAM® EZ-Roll'r™ powered cradle for Samsung Galaxy Tab Active4 Pro and Tab Active Pro, C size double ball mount with round plates, backing plate adapter, and charger

Powered cradle provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode

Access to speakers, mics, and headphone jack remain while device is docked

Compatible with factory skin and RAM® Skin™

Backed by a 3-year warranty

OVERVIEW

This Samsung Galaxy Tab Active4 Pro and Tab Active Pro kit includes everything you need to keep your device powered and secure. It includes the RAM® EZ-Roll’r™ powered dock, C size double ball mount with two round plates and short double socket arm, backing plate adapter, GDS® modular hardwire charger, GDS® USB 2.0 cable, and cable clamp. The RAM® EZ-Roll’r™ powered cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a mUSB female pigtail for power.

HARDWARE INCLUDED

(1) 2.10" x 2.60" Steel Backing Plate

(4) #8-32 x 1" Screws

(4) #8 Split Lock Washers

(4) #8 Flat Washers

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs

Heavy-Duty Use: 3 lbs

MATERIALS

Steel

Marine-grade aluminium

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10V - 30V DC

OUTPUT VOLTAGE

5-9VDC*

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

mUSB 2.0

INPUT CABLE LENGTH

1.2 Meter

OPERATING TEMPERATURE

-10°C to +70°C

E TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CERTIFICATIONS

CE Certification

e-Mark Certification

RCM Certification

FCC Certification

WARRANTY

3 year warranty

WEIGHT

1.0kg

ADDITIONAL INFORMATION

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
