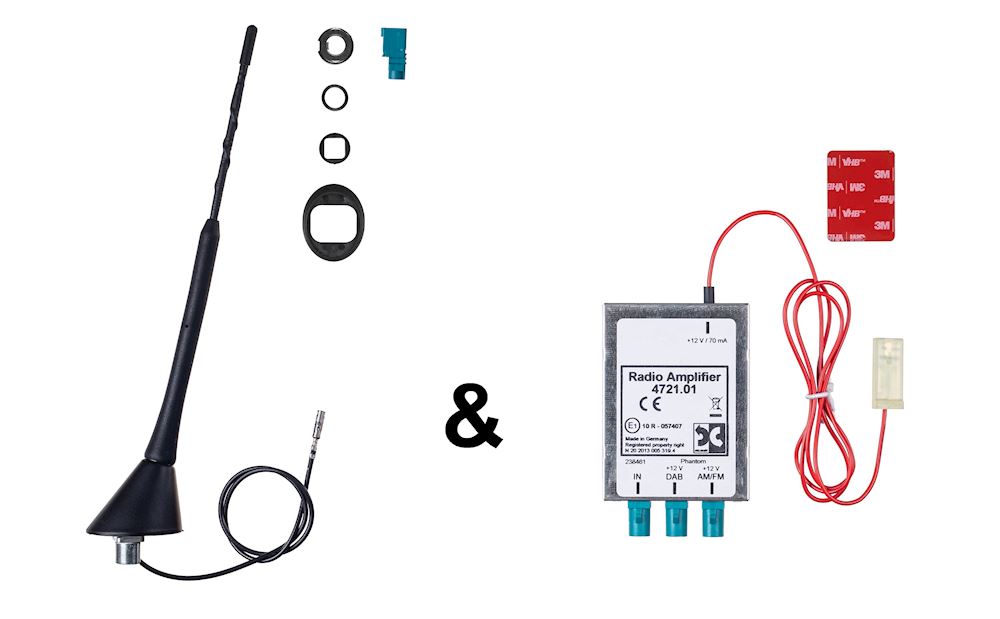

AM/FM & DAB+ Roof Mount Antenna with Amplifier

The A.2116.01 AM/FM & DAB + Roof mount antenna establishes reliable, high-performance radio connections in the field of broadcasting and is suitable for mobile outdoor use (on the roof or side).

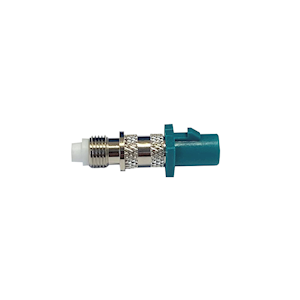

Cable length is 0.4M terminated with a Universal FAKRA Female Connector.

A 5M cable extension is available to be Purchased seperatley here:

Frequency bands and communication services

The ATTB 2116.01 multifunction antenna covers several frequency bands and thus communication services. In the broadcasting sector, the following services can be received:

• AM (0.15 – 16 MHz)
• FM (87.5 - 108 MHz)
• DAB/DAB+ (Band III, 174 – 240 MHz)
• DAB/DAB+ (L-band, 1452-1492 MHz)

Special features and characteristics

• Passive DAB reception in the DAB+ Band III & DAB+ L-Band range
• Passive Flex Roof Antenna
• Passive single-cable solution for FM and DAB+
• Low installation height due to the use of a short rod
• Low installation depth (~15 mm)
• Low noise antenna rod
• Easier roof installation
• Low installation effort (only one mounting hole for 2 functions)
• Comes with the ATTB DAB Digital Amplifier (A.4721.01)
