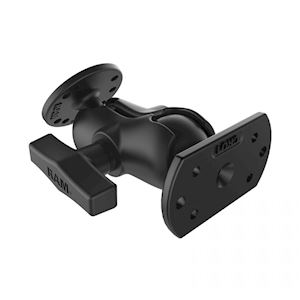

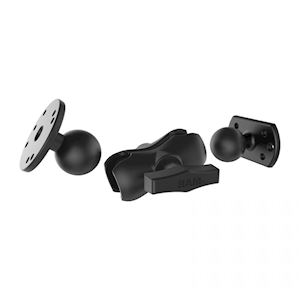

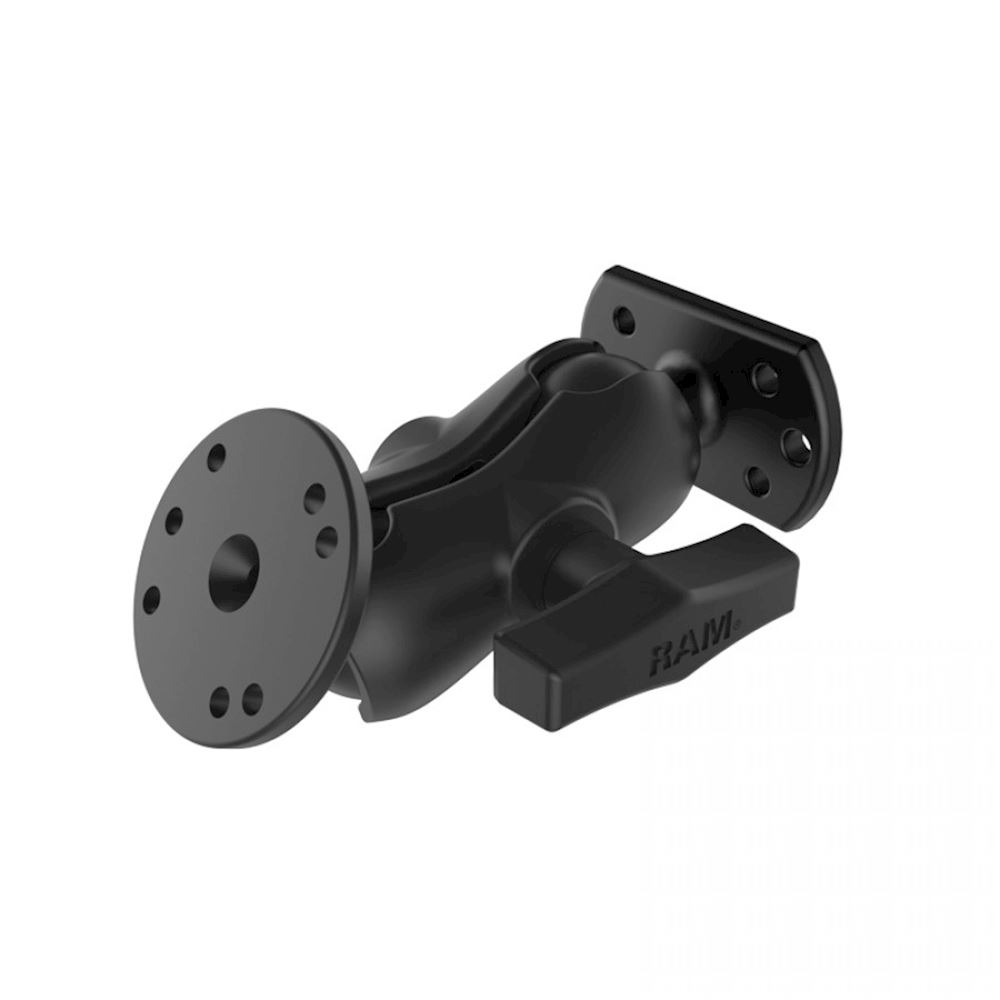

RAM® Universal Short Double Ball Mount for Crown Work Assist®

RAM® Universal Short Double Ball Mount for Crown Work Assist®

FEATURES

Crown double ball mount with short C Size arm contains mounting holes on the base aligned to work with Crown Work Assist® clamp accessories

Compatible with RAM® C Size components

Made of powder-coated steel and marine-grade aluminium

Backed by a lifetime warranty

OVERVIEW

This Crown double ball mount comes with a short C Size arm, Crown ball base and 2.5" round ball adpater with universal AMPS hole pattern aligned to work with Crown Work Assist® clamp accessories. This double ball mount is the ideal mounting solution for forklifts and other Material Handling applications.

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 1.8kg

Heavy-Duty Use: 1.4kg

MATERIALS

Marine-grade aluminium

WEIGHT

440g
