RAM® Power + Dual USB Dock for Honeywell RT10 Tablet

RAM® Power + Dual USB Dock for Honeywell RT10 Tablet

FEATURES

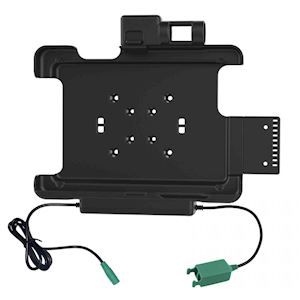

Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals

When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack; tablet scanning works while tablet is docked

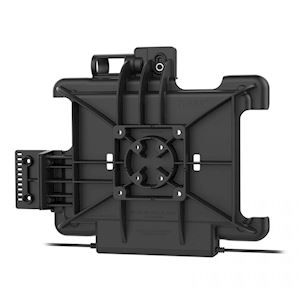

Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

OVERVIEW

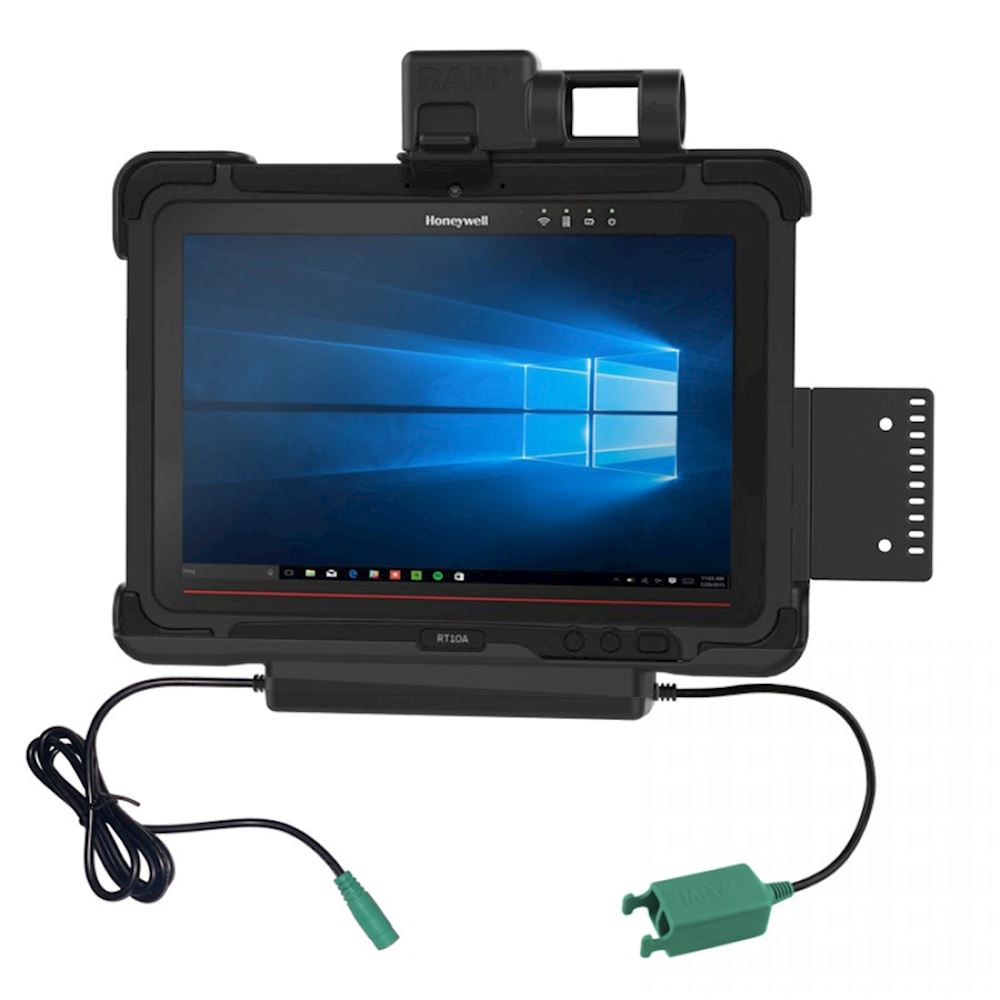

The RAM® Vehicle Dock for the Honeywell RT10 rugged tablet allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(1) Side bracket for accessory mounting and strain relief

(4) #8-32 x 5/8” Machine Screws

(2) #8-32 x 1/2” Machine Screws

(6) #8-32 Nylock Nuts

(4) #10-24 x 5/8” Machine Screws

(4) #10-24 Nylock Nuts

(6) Small Cable Ties

(2) Large Cable Ties

HOLE PATTERN

75 x 75mm VESA

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

INPUT CONNECTOR

Power: 5.5mm DC Connector

Data: USB Type A (2)

OUTPUT CONNECTOR

(2) USB 2.0 Type A

TRANSFER SPEED

12Mbps

WEIGHT

790g

WARRANTY STATUS

3 year warranty
