0297010.WXNV Littelfuse Mini Fuse 10 Amp Pack of 50
In stock
Same day despatch on orders placed before 4pm
Code: FBML.10
Product Details
'MINIFUSE' 297 Series

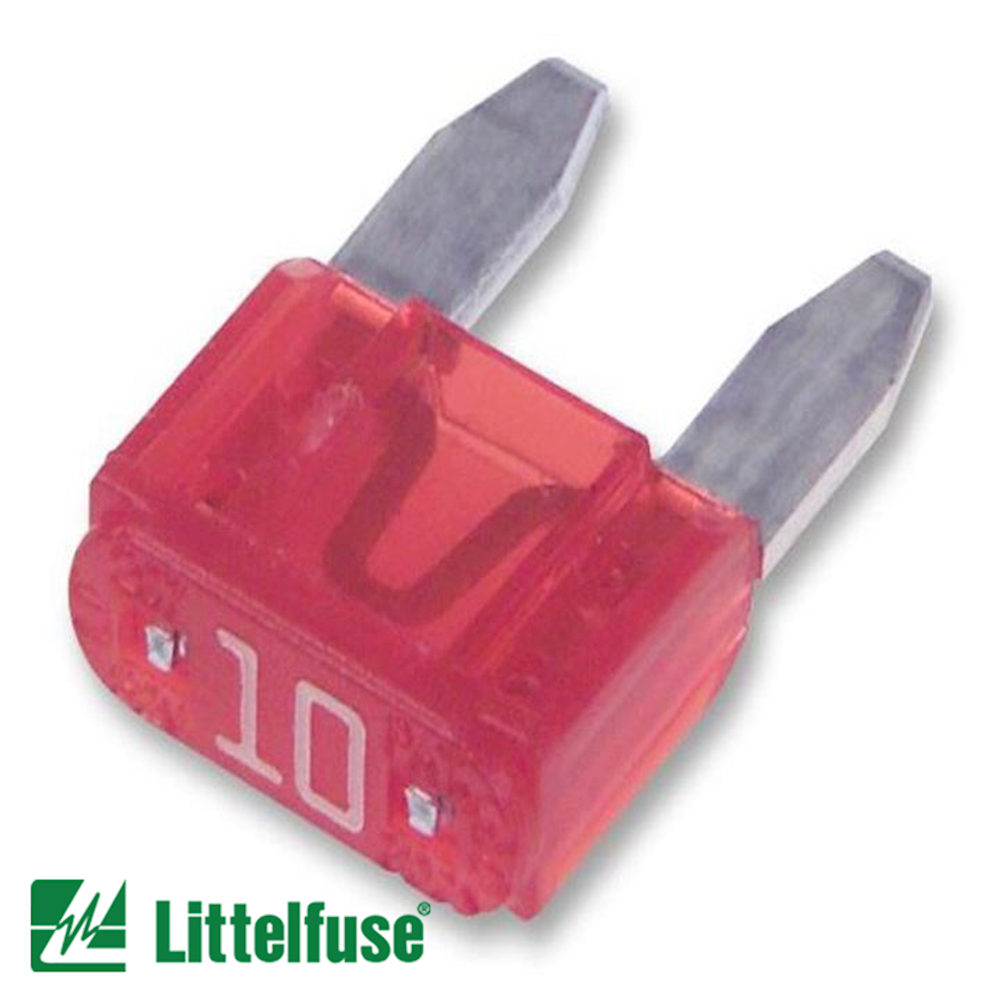

0297010.WXNV Littelfuse Mini Fuse 10 Amp / Pack Size 50
The MINI fuse series from Littelfuse is the new standard for vehicle circuit protection. The series miniature design utilizes less space and has the ability to cope with high temperatures, even in adverse environments.
Features:
Temperature Range: -40˚C to +125˚C
Miniature fuses to SAE J2 077
Can also be used for low voltage applications
Body thickness 3.81mm
32Vdc
Specifications
| Attribute | Value |
| Current Rating | 10A |
| Fuse Type | Blade |
| Blade Size | Mini |
| Voltage Rating | 32V dc |
| Colour | Red |
| Length | 10.9mm |
| Width | 3.8mm |
| Height | 8.8mm |
| Body Material | PA 66 |
| Fuse Speed | F |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Operating Temperature Range | -40 → +125 °C |
| Breaking Capacity at Maximum Voltage Rating | 1000 A |
