Power Relay, DPDT, 12 VDC, 8 A, 48 Series, DIN Rail, DC Sensitive (48P570120050SPA)
In stock
Same day despatch on orders placed before 4pm
Code: R.820-942
Power Relay, DPDT, 12 VDC, 8 A, 48 Series, DIN Rail, DC Sensitive (48P570120050SPA)
Product Overview

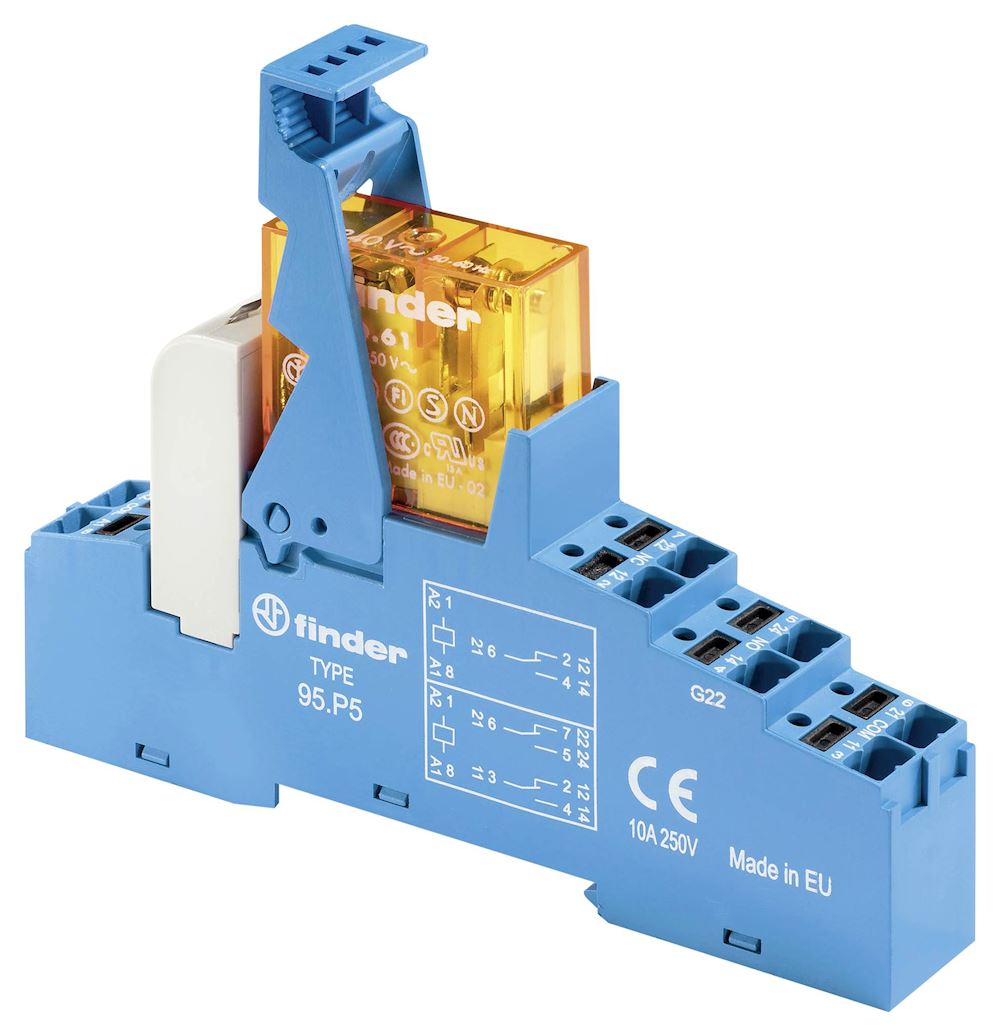

The 48P570120050SPA from Finder is a 48 Series, 35mm rail (EN 60715) mount, push-in terminal relay interface module. It has 2 CO (DPDT) contact configuration, 8A and 15.8mm wide. This is ideal interface for PLC and electronic systems.
- Sensitive DC coil version with 12VDC coil voltage
- AgNi standard contact material, cadmium free contacts
- Insulation between coil and contacts (1.2/50µs) is 6 (8mm)
- Rated voltage of 250V at 8A rated current
- Mechanical life of 10 x 10˄6, electrical life at rated load AC1 is 100 x 10˄3
- Standard for DC, green LED + diode (polarity +A1)
- Dielectric strength between open contacts is 1000VAC
- Ambient temperature range from -40°C to +70°C
- IP 20 protection category
- EAC, CSA, RINA, cURus, NF and VDE approval
Applications
Industrial, Automation & Process Control
